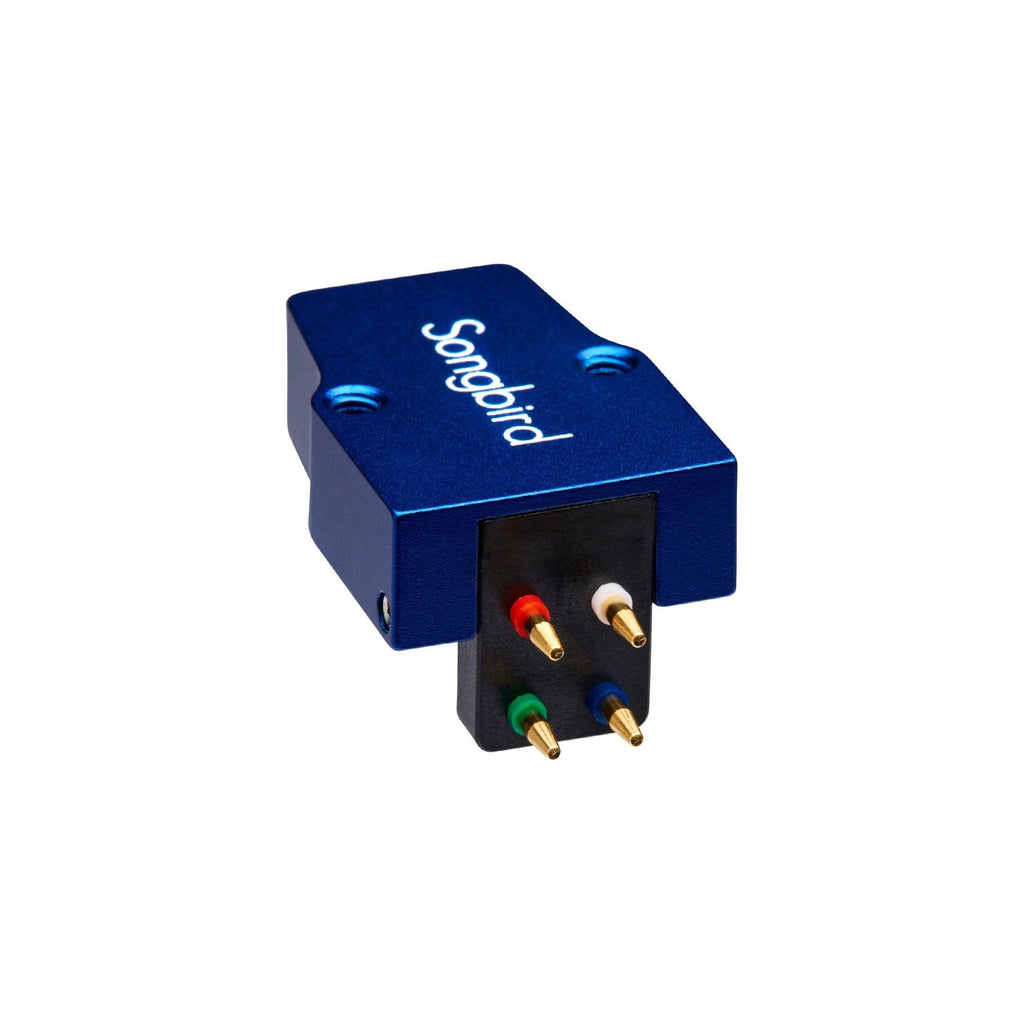

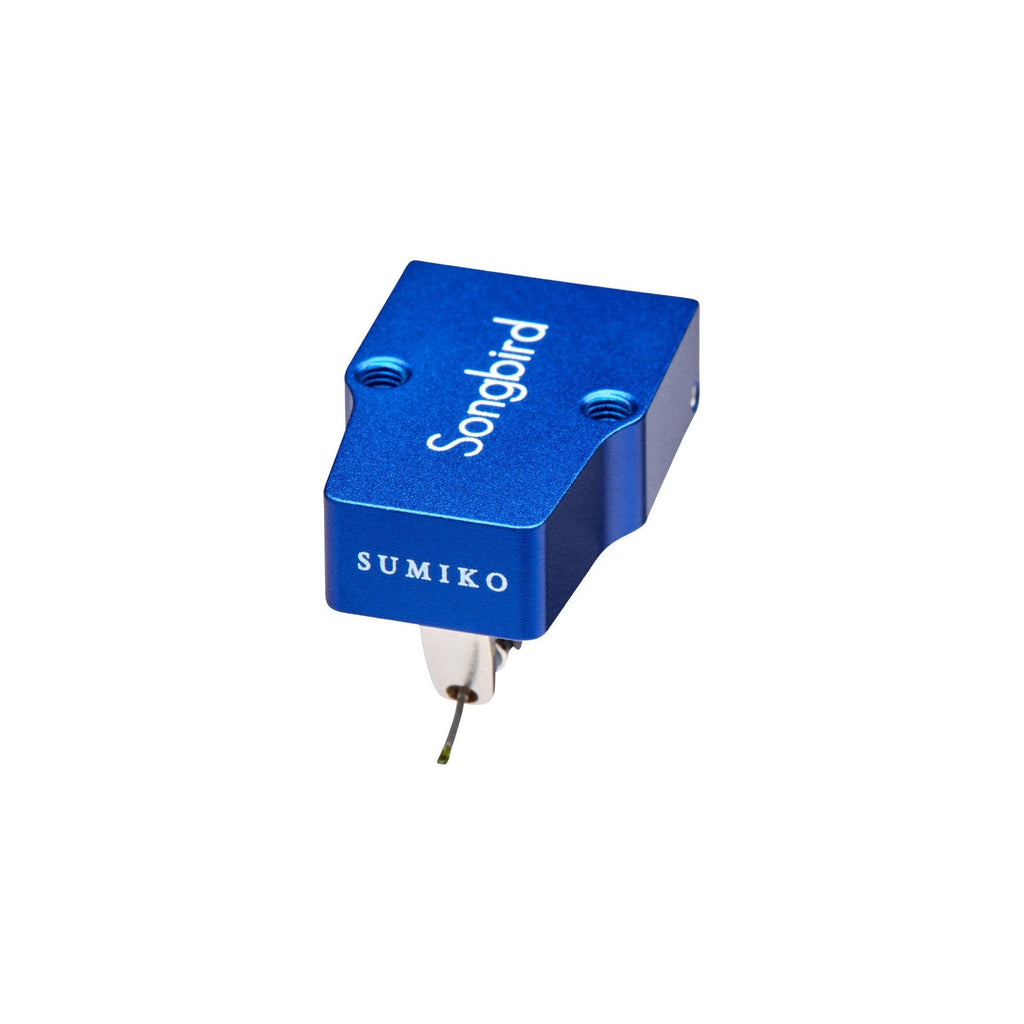

Sumiko - Songbird High MC Cartridge
Particularly adept with vocals & acoustic instruments, Sumiko created Songbird to make genuine moving coil imaging available to any listener. It delivers the sweetest highs over a robust, rich yet clear low-midrange. Like its big sibling Starling, Songbird suspends sonic images in a highly controlled manner. As opposed to music being flung from your speakers, you’re placed among the naturally-positioned instruments in the soundstage, close in proximity to the intimate nuances of the musical material. If you’ve got an MM phono section, there’s a good chance Songbird High is the cartridge you’ve been dreaming about.
Clear and ultra-musical with just the right degree of warmth, Songbird Low offers an even deeper soundstage with greater reach width-wise. As it’s generally more quiet thus allowing more detail to surface, you’ll be shocked by the surprises it yields even in the recordings you’re most familiar with. Stunningly holographic in a manner that approaches that of Starling, Songbird Low maximizes the refinement of your MC system at a price that’s well below reasonable considering the performance it achieves.
Technical Specifications
| Cartridge Type | Moving Coil |
|---|---|
| Mass | 8.5g |
| Dimensions | 17 x 18 x 28.5mm (WxHxD) |
| Stylus | 0.3 x 0.7mil Elliptical |
| Cantilever Material | ?0.5mm Treated Aluminum Pip |
| Coils | High-Purity Copper |
| Internal Impedance | 135Ω |
| Load Impedance | 47kΩ |
| Frequency Response | 12Hz - 40kHz |
| Output Voltage | 2.5mV |
| Channel Separation | 30dB @ 1kHz |
| Channel Balance | < 0.5dB @ 1kHz |
| Compliance | 12x10-6 cm/dyn @ 100Hz |
| Recommended load capacitance | 100pF - 200pF |
| Vertical tracking angle | 20° |
| Tracking Force | 1.8g - 2.2g |
| Recommended Force | 2.0g |
