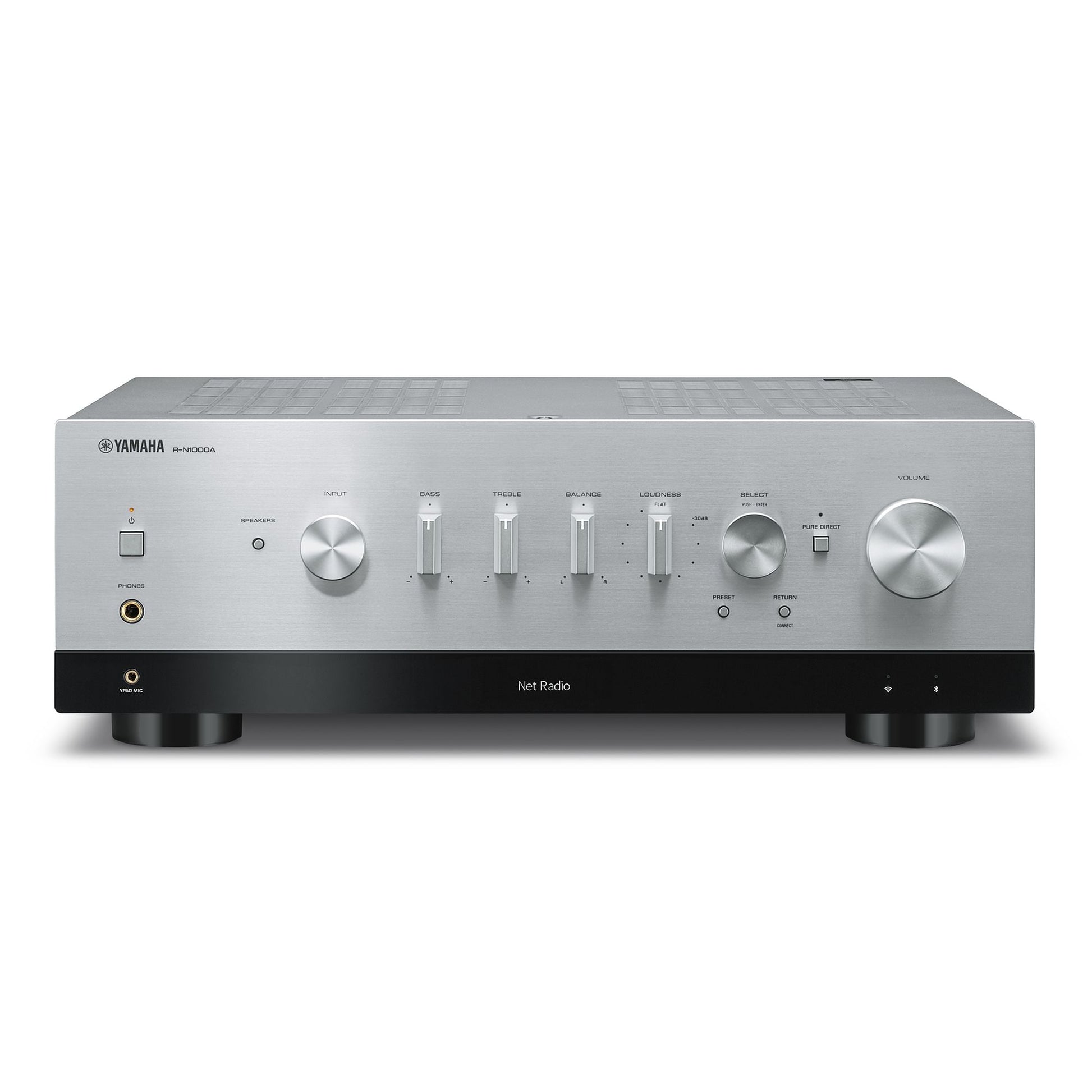

| Receiver / Integrated Amplifier |
| Network section |
File Format |
MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD |
| Wi-Fi |
Yes |
| Bluetooth |
Yes (SBC / AAC) |
| AirPlay |
Yes |
| Rated Output Power |
[20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms) |
| High Dynamic Power/Channel (8/6/4/2 ohms) |
140 / 170 / 220 / 290 W |
| Frequency Response |
10 Hz-100 kHz 0±1.0 dB, 20-20 kHｚ 0±0.5 (Pure Direct ON) |
| Signal-to-Noise Ratio (CD) |
100 dB (Pure Direct ON) |

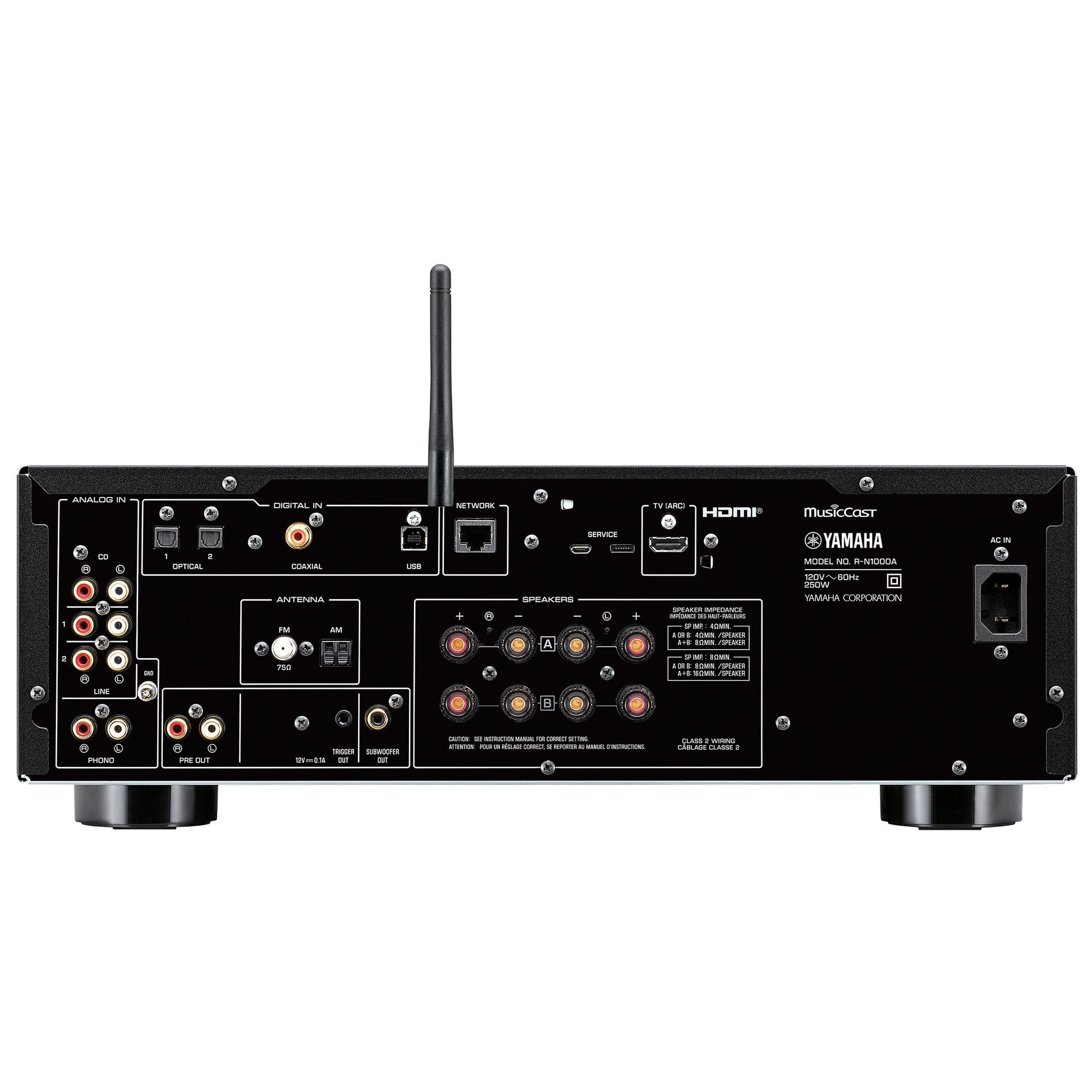

| Audio In / Out |
Phono, CD, line1, line2 / Pre out, Subwoofer out |
| Digital Input |
Optical1, Optical2, Coaxial |
| HDMI(ARC) |
Yes |
| Phono Input |
Yes |
| USB Input |
USB DAC (USB B-type) |
| Ethernet |
Yes |
| Headphone Out |
Yes |
| Subwoofer Out |
Yes |
| Control (Trigger) Out |
Yes |
| FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) |
3 µV (20.8 dBf) |
| FM Signal-to-Noise Ratio (Mono/Stereo) |
69 dB / 68 dB |
| Pure Direct |
Yes |
| ToP-ART |
Yes |
| Standby Power Consumption |
0.1 W (Network standby on/ Wi-Fi connection 1.8 W) |
| Dimensions (W x H x D) |
17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2") |
| Weight |
27.1 lbs |
