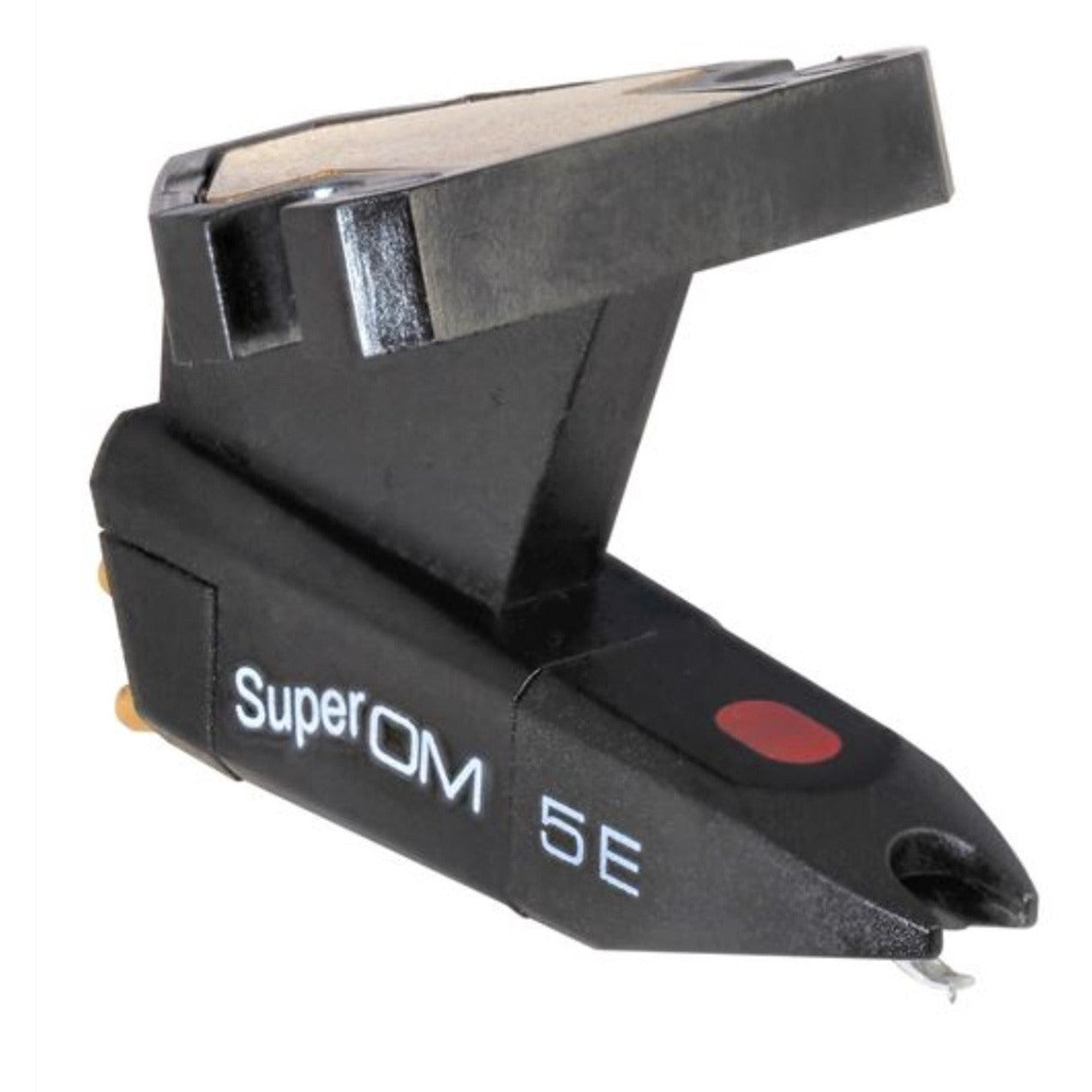

Ortofon - Super OM 5E MM Phono Cartridge

Ortofon - Super OM 5E MM Phono Cartridge

Regular price $89.99 USD
Regular price Sale price $89.99 USD
Sale Sold out
Shipping Policy.

The OM 5E and Super OM 5E feature an elliptical diamond.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

The Super OM 5E major improvements:

  1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.
  2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.
  3. OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.

Optimal fit and sound reproduction

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM's. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

Super OM 5E features Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

Technical Specifications

Output Voltage 1000 Hz, 5cm/sec. - 4 mV
Channel Balance 1 kHz - 1.5 dB
Channel Separation 1 kHz - 22 dB
Channel Separation 15 kHz - 15 dB
Frequency Response 20-20.000 Hz + 3 / -3
Tracking Ability 315Hz at recommended tracking force - 60 µm
Compliance, Dynamic, Lateral 20 µm/mN
Stylus Type Elliptical
Stylus Tip Radius r/R 8/18 µm
Tracking Force Range 1.5-2.0 g (15-20 mN)
Tracking Force, Recommended 1.75 g (17.5 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 1 kOhm
Internal Inductance 580 mH
Recommended Load Resistance 47 kOhm
Recommended Load Capacitance 200-500 pF
Cartridge Color, Body/Stylus Black/Black
Cartridge Weight incl. Extra Weight 5 g
Cartridge Weight excl. Extra Weight 2.5 g
Replacement Stylus Unit Stylus 5 E, Stylus 10
UPC: 5705796013849 View full details
