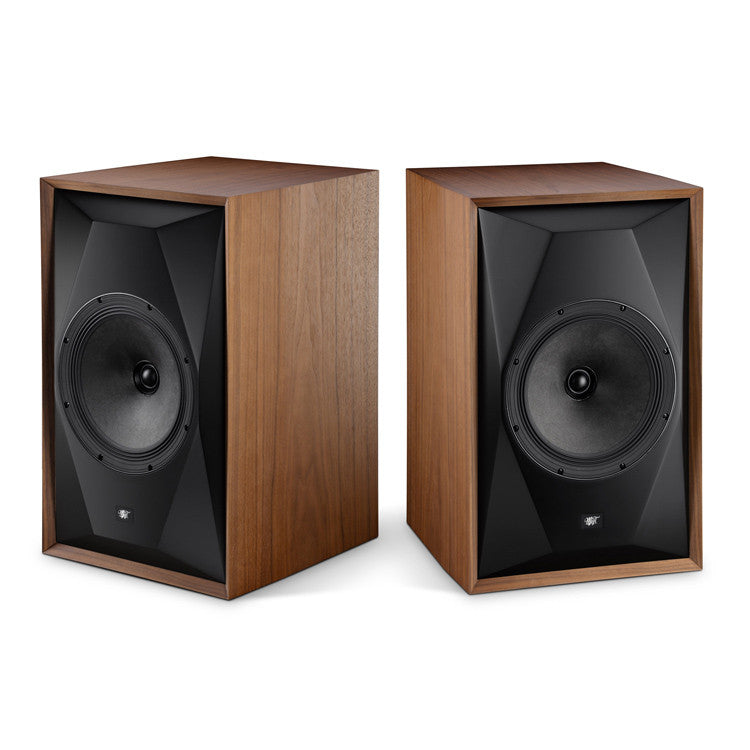

Mobile Fidelity - SourcePoint 10 Master Edition Bookshelf Speakers (Pair)

Andrew Jones' Concentric-Driver Reference, Refined: A Three-Way User-Selectable Crossover Takes the SourcePoint 10 Even Further

The Mobile Fidelity Electronics SourcePoint 10 Master Edition is a ground-up refinement of the acclaimed loudspeaker that put designer Andrew Jones' point-source concept on the map. After more than two years of development in his private California studio, Jones reworked the heart of the speaker — the crossover — into a three-way, user-selectable network built across two dedicated circuit boards from audiophile-grade parts. The result is tighter integration between the woofer and tweeter, lower distortion, and a treble you can tailor to your room and taste, all while preserving the soundstaging, imaging, and dynamic punch the original earned its reputation for.

At its core sits a custom-tooled 10-inch concentric driver with a 1.25-inch soft-dome tweeter mounted at the center of the woofer cone. The cone doubles as a waveguide, aligning the dispersion of the two drivers so they behave as a single point source. That large woofer keeps cone movement to a minimum even on demanding low-frequency passages, delivering accurate mids, controlled bass, and effortless dynamics, while a corrugated surround improves linear excursion and protects the tweeter's wave expansion from diffraction.

Jones' "Twin Drive" magnet system pairs high-energy neodymium magnets on both the tweeter and woofer for a linear, low-distortion motor, with copper sleeves added to reduce nonlinear inductance. The cabinet is built from one-inch real-wood veneer panels with extensive internal bracing and a sculpted two-inch front baffle, whose swept-back facets cut the diffraction errors common to flat-baffle designs. Two large rear-firing vents allow high bass output with low turbulence, and removable grilles let you voice the speaker visually as well as sonically.

Rated at 91dB sensitivity with an easy impedance load, the SourcePoint 10 Master Edition partners happily with a wide range of amplification and dials in easily in nearly any room. It can be used on a shelf or paired with MoFi's dedicated stands, and like every Mobile Fidelity component it's built to honor the company's decades-long commitment to signal purity and faithful reproduction.

Specifications:
Frequency Response: 42Hz-30kHz
Nominal Impedance: 8 Ohms, 6.2 Ohms minimum
Sensitivity: 91dB/2.83V/1m
Crossover Frequency: 1.6kHz
Minimum Recommended Power: 30W
Max Power Input: 200W
Dimensions (WHD): 14.5" x 22.5" x 16.6" (with grille)
Weight: 46.2 lbs. each
Warranty: Five years parts & labor
