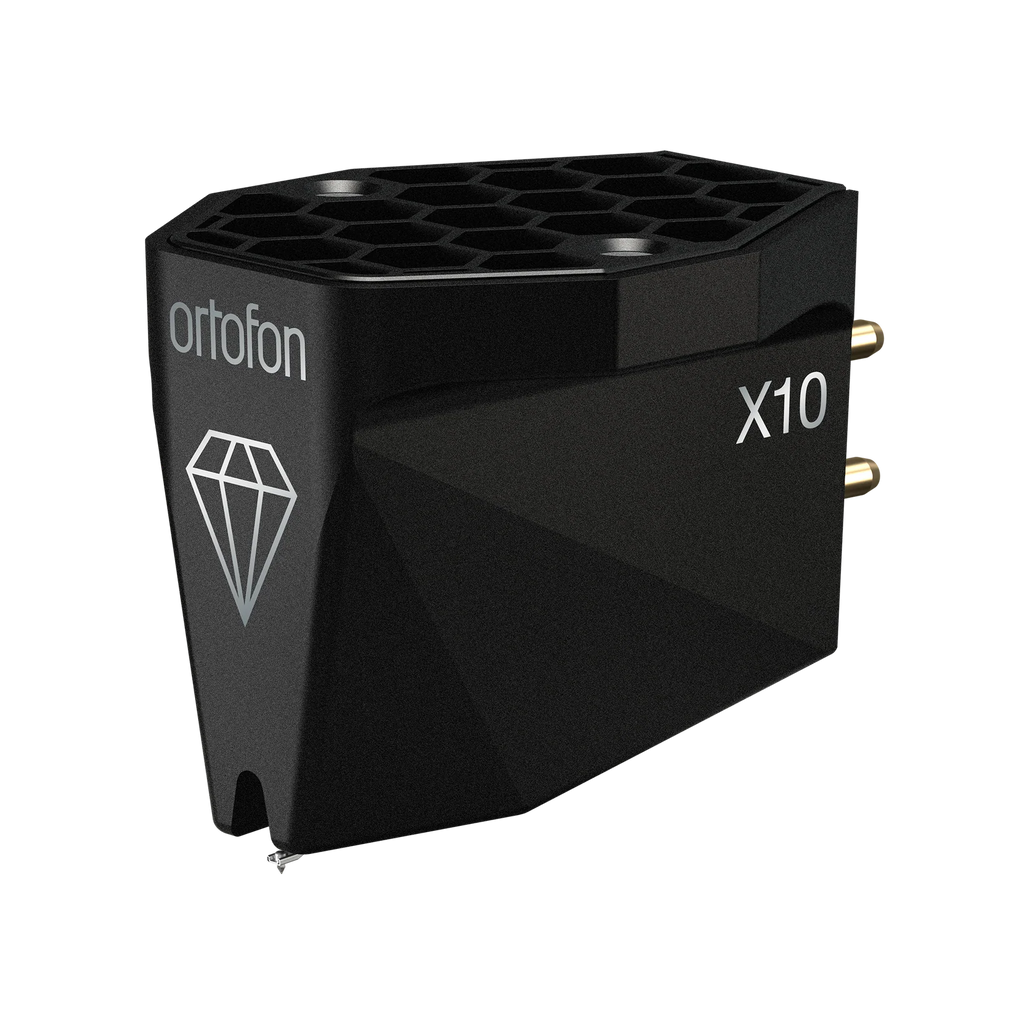

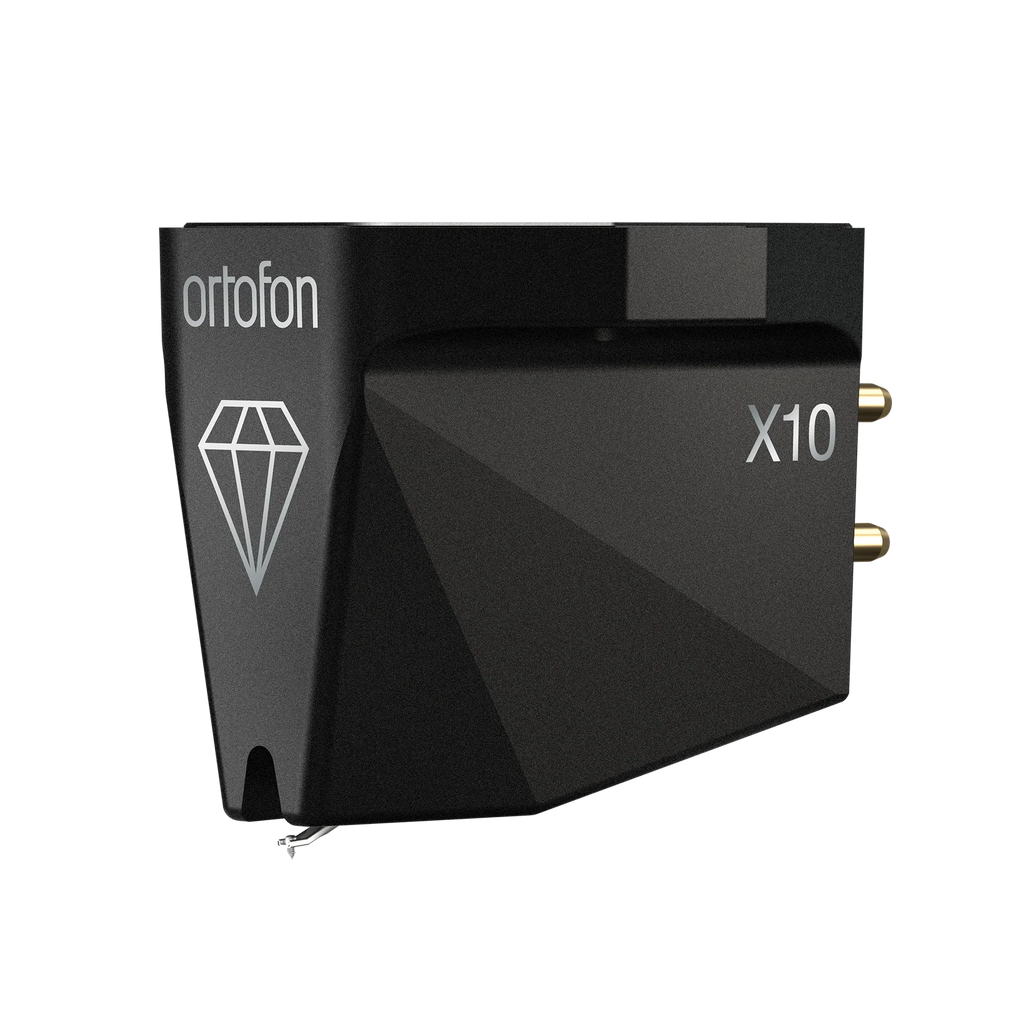

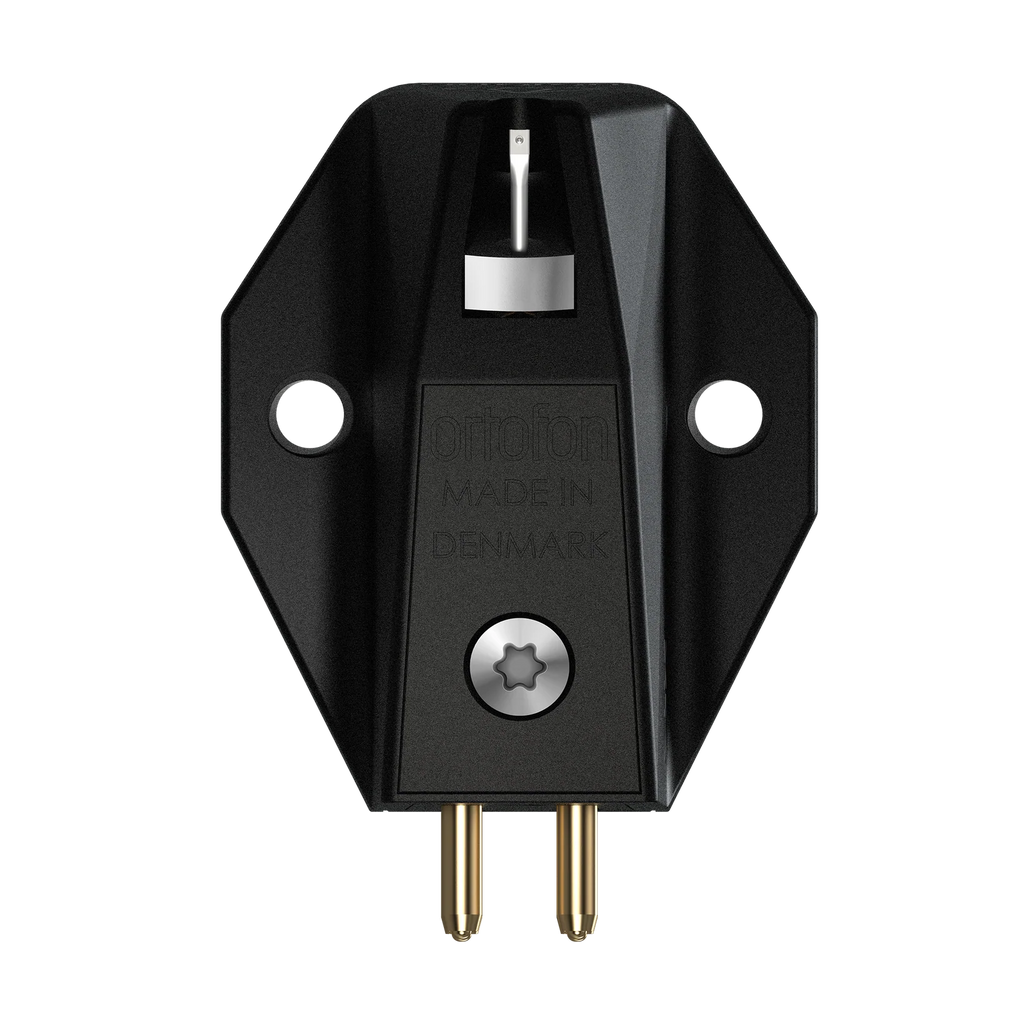

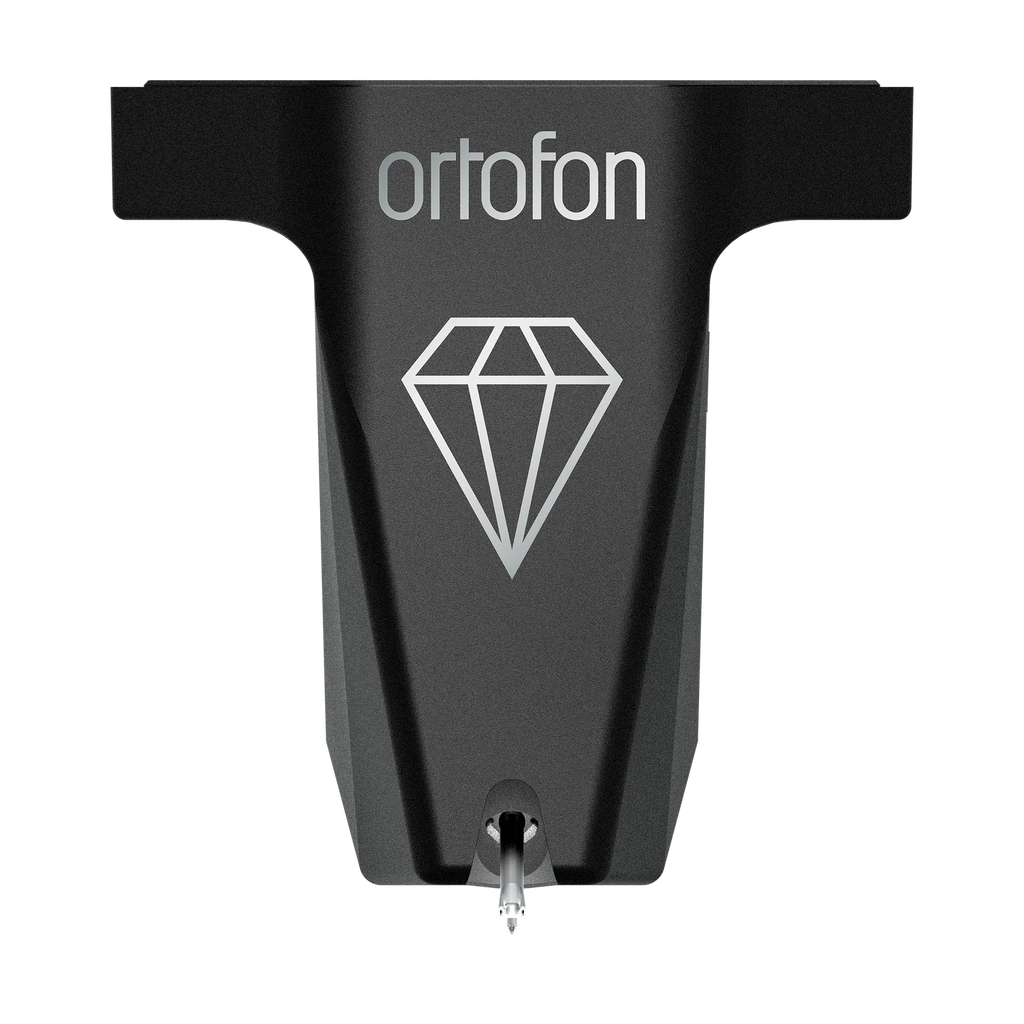

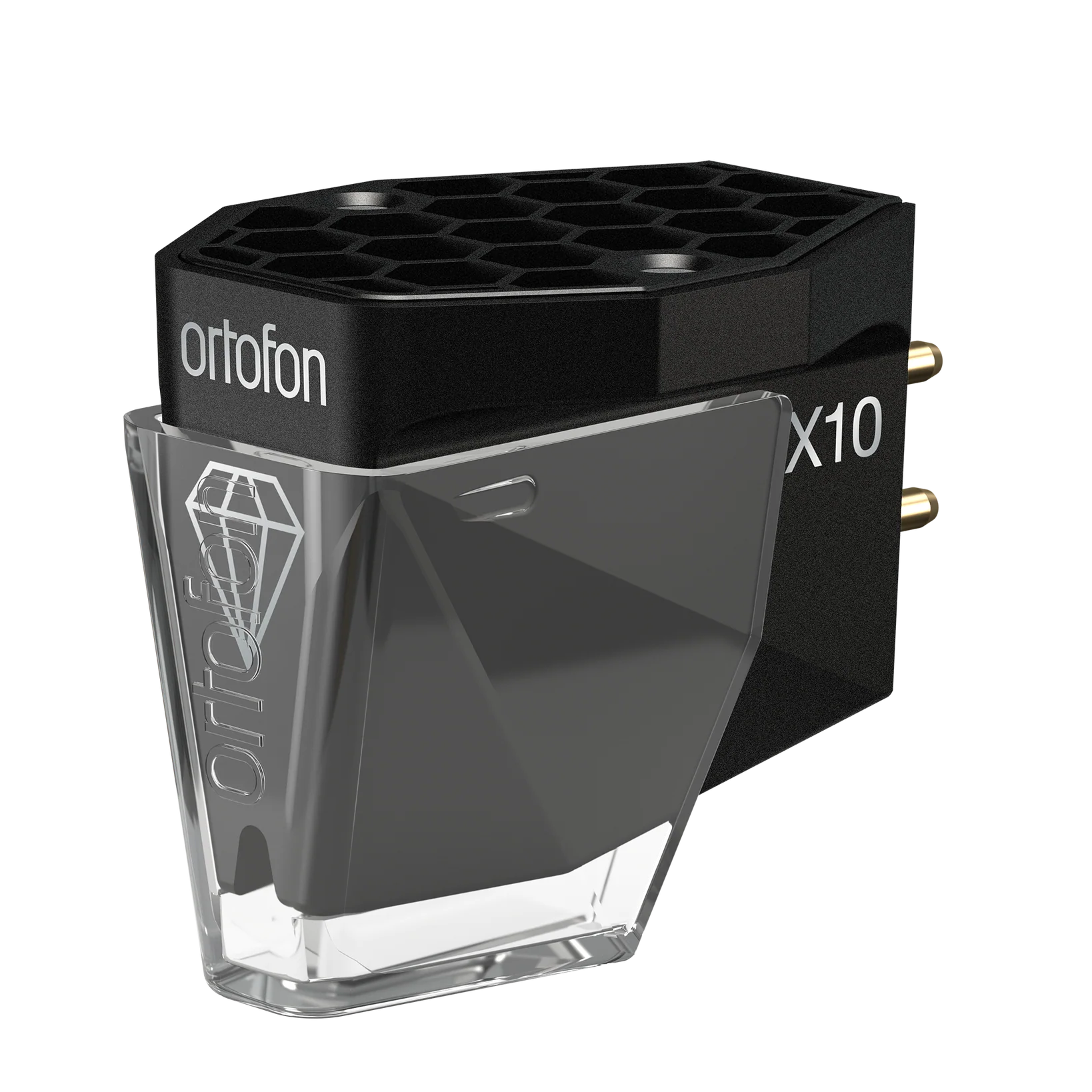

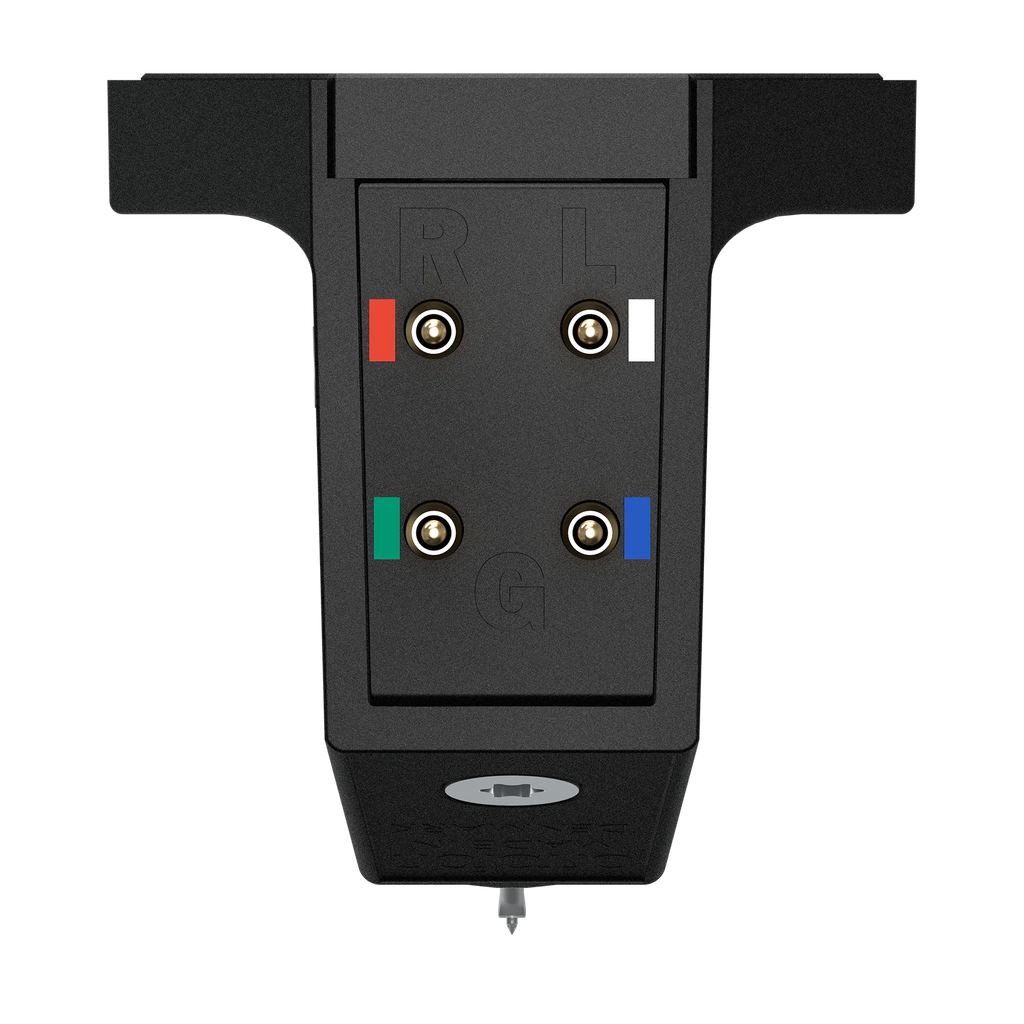

Ortofon - MC X10 Cartridge

Ortofon - MC X10 Cartridge

$329.99 $369.00

MC X10 lays the foundation for high-fidelity sound. Its refined elliptical diamond stylus delivers clarity and precision, bringing your records to life with stunning detail. It’s the perfect starting point for an exceptional audio journey.

A New Benchmark in Analog Perfection

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

Exceptional Signal Clarity

Pure Silver Coil System

All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Maximum Magnetic Efficiency

Magnet system

The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Precision Engineering for Unmatched Stability

Custom-Developed Rubber Dampers

In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

Specifications

Channel balance at 1 kHz: 0.5 dB
Output voltage at 1 kHz, 5cm/sec: 0.4 mV
Channel separation at 1 kHz: 24 dB
Frequency response 20 Hz - 20 kHz: +/-2 dB
Compliance, dynamic, lateral: 13 μm/mN
Cantilever material: Aluminium
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 μm
Stylus suspensions: Ortofon exclusive
Coil system: Quad coils
Tracking force, recommended: 2.0 grams
Internal impedance, DC resistance: 6 Ω
Coil wire material: High-purity silver
Cartridge weight: 8.6 grams
Recommended load resistance: > 50 Ω
UPC: 5705796271287
