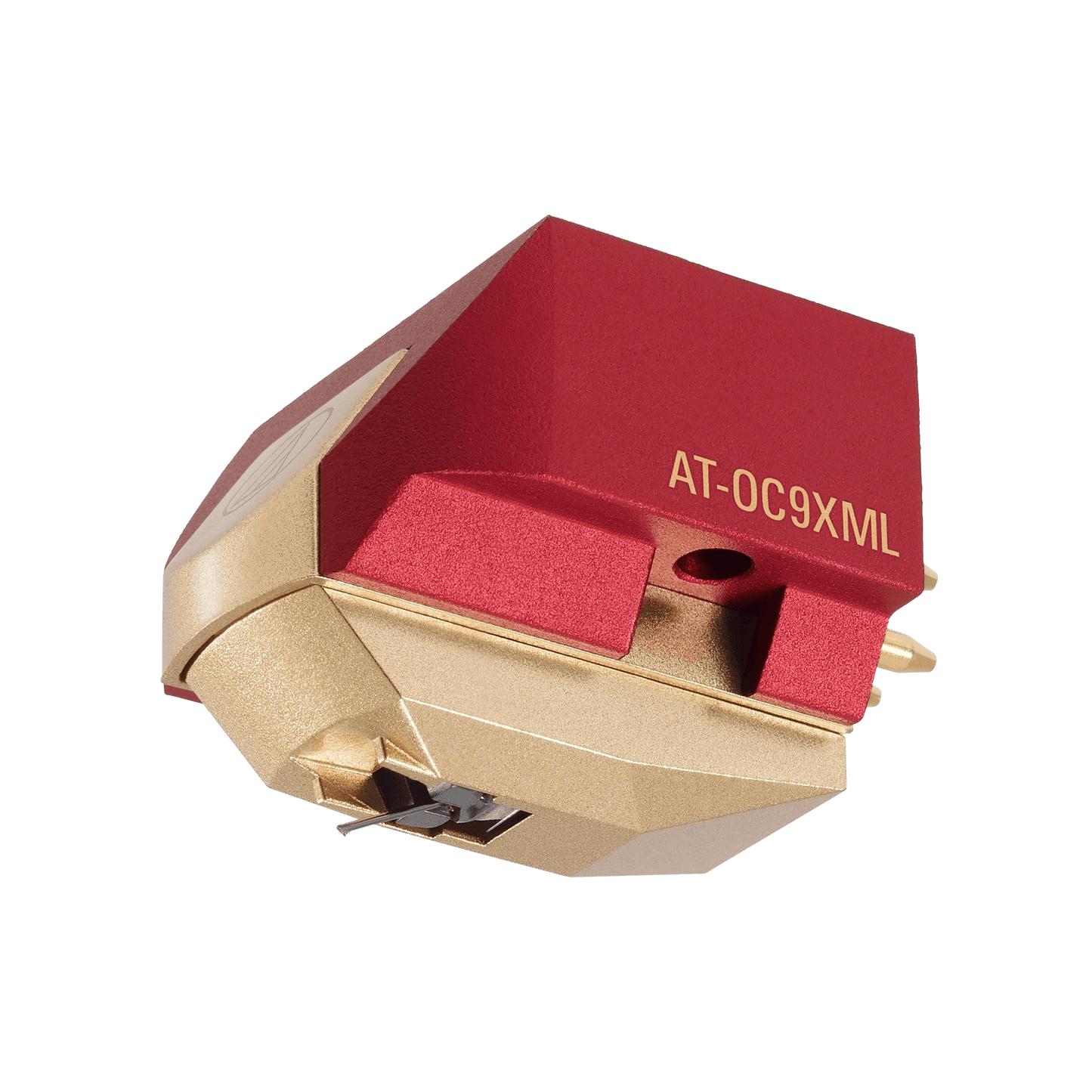

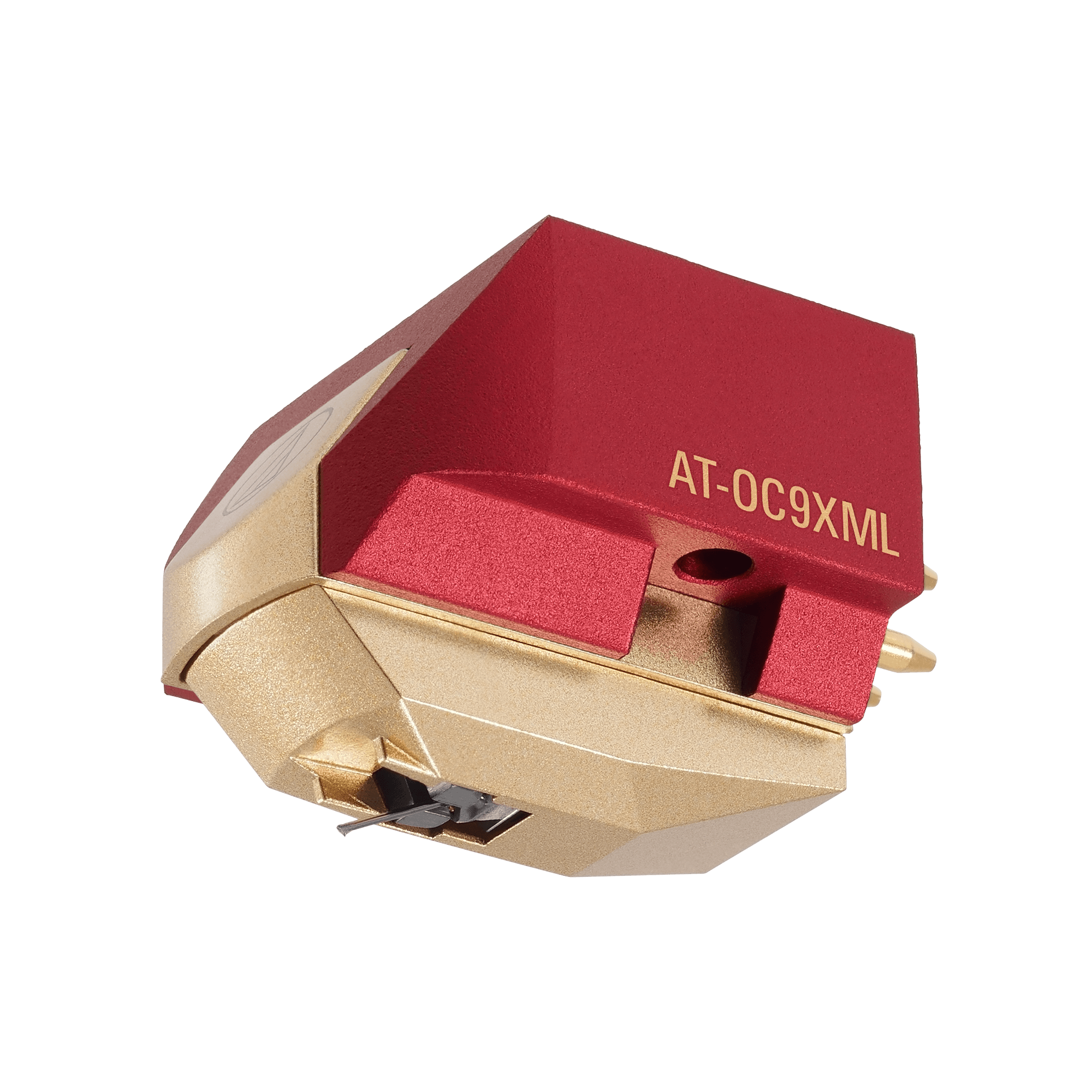

Audio-Technica - AT-OC9XML Dual Moving Coil Cartridge

A MicroLinear stylus and nude boron cantilever make this the long-haul detail champion of Audio-Technica's OC9X moving coil series.

The AT-OC9XML is built on Audio-Technica's dual moving coil design, with independent left and right channel coils wound from Pure Copper by Ohno Continuous Casting (PCOCC) wire and aligned in a reverse V-shaped formation to minimize stylus pressure and distortion. A neodymium magnet and premium permendur yoke enhance magnetic energy, and the rigid aluminum body suppresses resonance.

The OC9XML's signature is its nude MicroLinear stylus (2.2 x 0.12 mil) on a 0.28 mm nude boron cantilever. The MicroLinear profile's tiny contact radius traces high-frequency groove detail with precision and maintains its shape as it wears, keeping performance consistent over the stylus's life while delivering frequency response out to 47,000 Hz.

Features

• MicroLinear stylus with nude square shank (2.2 x 0.12 mil)
• 0.28 mm diameter nude boron cantilever
• Dual moving coil design with independent left/right coils
• PCOCC coil wire in reverse V-shaped formation
• Neodymium magnet with premium permendur yoke
• Rigid aluminum body to reduce resonance
• Pre-threaded half-inch mount body for easy two-screw installation

Specifications

• Type: Dual moving coil
• Stylus: MicroLinear, nude square shank, 2.2 x 0.12 mil
• Cantilever: 0.28 mm nude boron
• Coil Wire: PCOCC
• Magnet and Yoke: Neodymium magnet with premium permendur yoke
• Body: Aluminum
• Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)
• Frequency Response: 20-47,000 Hz
• Channel Separation: 27 dB (1 kHz)
• Channel Balance: 1.0 dB (1 kHz)
• Tracking Force: 1.8-2.2 g (2.0 g standard)
• Recommended Load Impedance: Min. 100 ohms
• Coil Impedance: 12 ohms (1 kHz)
• DC Resistance: 12 ohms
• Coil Inductance: 25 µH (1 kHz)
• Static Compliance: 20 x 10^-6 cm/dyne
• Dynamic Compliance: 16 x 10^-6 cm/dyne (100 Hz)
• Vertical Tracking Angle: 20 degrees
• Mount: Half-inch standard mount, threaded — two screws, no nuts required
• Weight: 7.6 g
