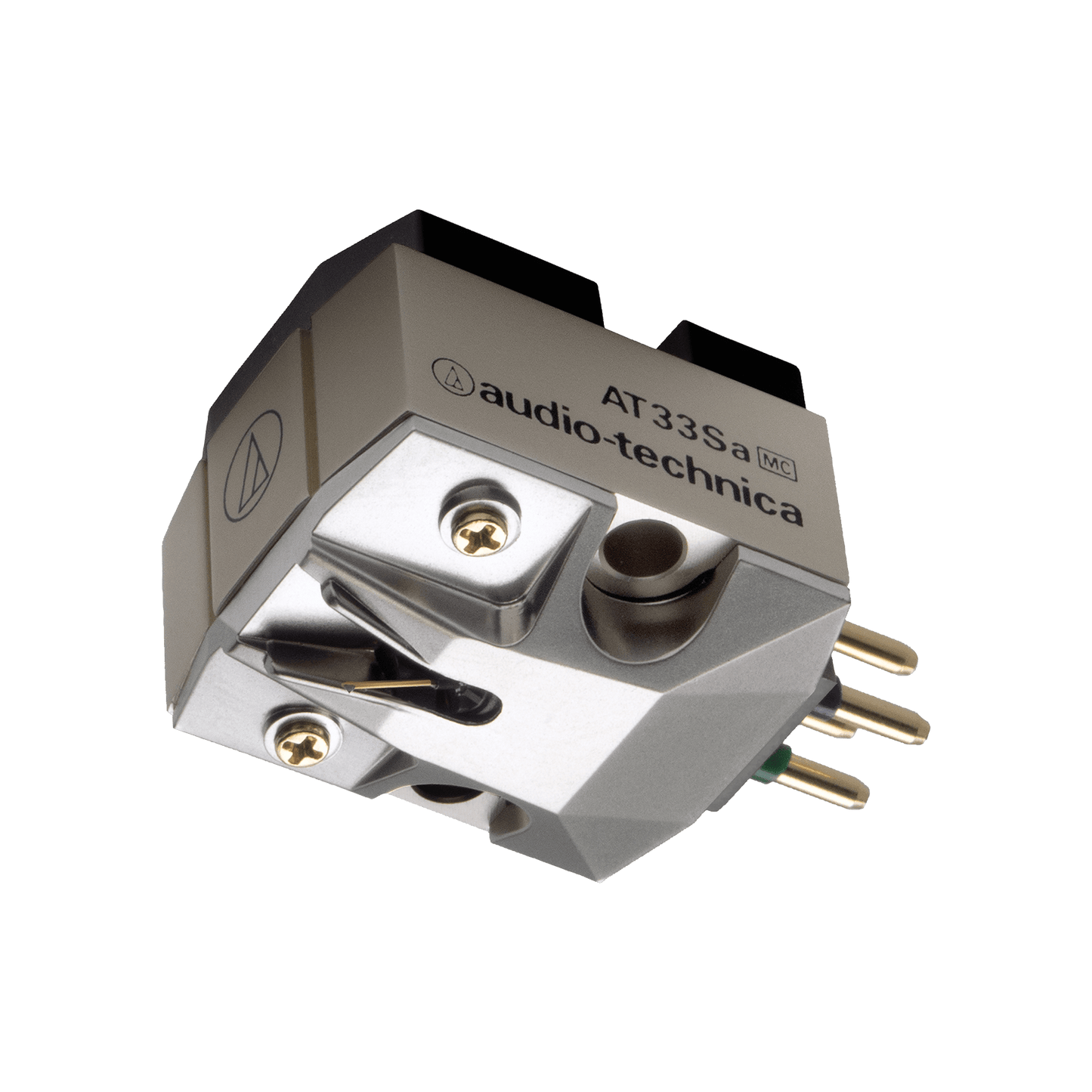

Audio-Technica - AT33Sa MC Phonograph Cartridge
Audio-Technica - AT33Sa MC Phonograph Cartridge
Audio-Technica's first moving coil cartridge with a Shibata line-contact stylus, built on the long-running AT33 platform.
The AT33Sa pairs the proven AT33-series dual moving coil generator with a nude square-shank Shibata stylus, combining superior high-range performance with strong mid and bass reproduction. The dual moving coil design, wound with PCOCC (Pure Copper by Ohno Continuous Casting) wire, delivers excellent channel separation across a wide 15-50,000 Hz frequency response.
A solid tapered boron cantilever keeps moving mass low, while a double damper construction further reduces weight and enhances audio quality. The aluminum and synthetic resin body keeps overall cartridge weight to a tonearm-friendly 6.9 grams.
Features
- Shibata line-contact stylus, nude square shank
- Solid tapered boron cantilever for low moving mass
- Dual moving coil design with PCOCC coil wire
- Double damper construction reduces weight and enhances sound quality
- Wide 15-50,000 Hz frequency response
- 30 dB channel separation at 1 kHz
- Aluminum and synthetic resin body, half-inch mounting
Specifications
- Type: Dual moving coil
- Stylus: Shibata (line contact), nude square shank
- Cantilever: Solid tapered boron
- Coil Wire: PCOCC
- Magnet and Yoke: Neodymium magnet with permendur yoke
- Body: Precision-cast hard aluminum alloy with synthetic resin
- Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)
- Frequency Response: 15-50,000 Hz
- Channel Separation: 30 dB (1 kHz)
- Channel Balance: 0.5 dB (1 kHz)
- Tracking Force: 1.8-2.2 g (2.0 g standard)
- Recommended Load Impedance: 100 ohms minimum
- Coil Impedance: 10 ohms (1 kHz)
- DC Resistance: 10 ohms
- Coil Inductance: 22 µH (1 kHz)
- Static Compliance: 40 x 10-6 cm/dyne
- Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
- Vertical Tracking Angle: 23 degrees
- Mount: Half-inch standard mount; mounting nuts supplied
- Weight: 6.9 g
