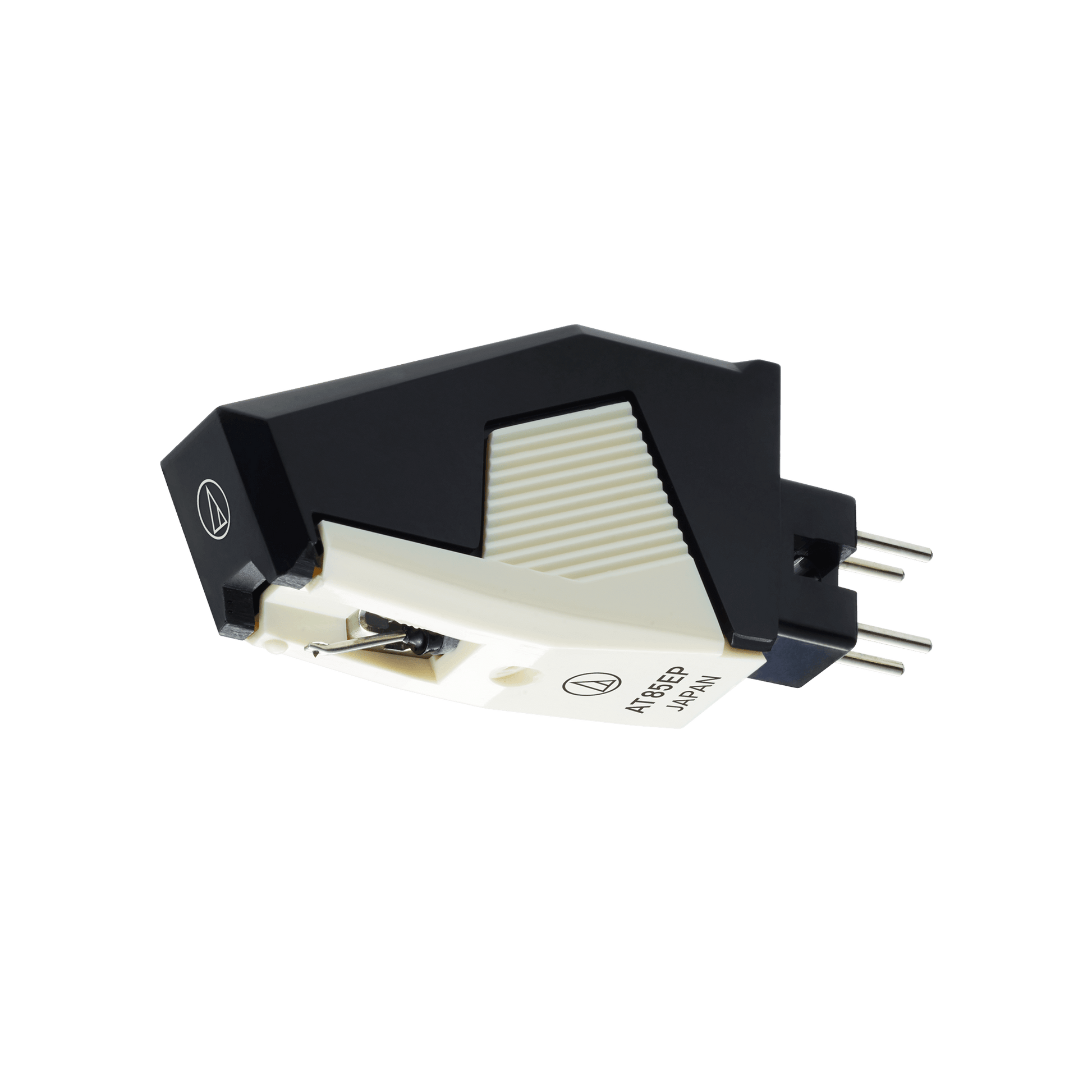

Audio-Technica - AT85EP Phonograph P-Mount Cartridge

An easy elliptical upgrade for P-mount turntables, bringing Audio-Technica's dual magnet engineering to plug-in simplicity.

The AT85EP is a 0.3 x 0.7 mil elliptical cartridge engineered for P-mount (T4P) turntables, incorporating precision engineering and many features found in Audio-Technica's more expensive cartridges. Its dual moving magnet design uses two magnets arranged to match the left and right channels of the stereo record groove.

The bonded round-shank elliptical stylus sits at the end of an aluminum pipe cantilever and tracks at a gentle 1.0-1.5 grams, making it a friendly match for the linear-tracking and automatic P-mount tables of the 1980s and beyond. When the stylus wears, simply swap in an ATN85EP replacement, no tools required.

Features

• 0.3 x 0.7 mil elliptical stylus, bonded round shank
• Aluminum pipe cantilever
• Dual moving magnet design matched to the stereo channels
• P-mount (T4P) plug-in design for quick installation
• Light 1.0-1.5 g tracking force range
• User-replaceable stylus (ATN85EP)

Specifications

• Type: Dual moving magnet, P-mount
• Stylus: 0.3 x 0.7 mil elliptical, bonded round shank
• Cantilever: Aluminum pipe
• Output Voltage: 3.5 mV (1 kHz, 5 cm/sec)
• Frequency Response: 20-20,000 Hz
• Channel Separation: 20 dB (1 kHz)
• Channel Balance: 2.0 dB (1 kHz)
• Tracking Force: 1.0-1.5 g (1.25 g standard)
• Recommended Load: 47,000 ohms / 100-200 pF
• Coil Impedance: 2.8 k ohms (1 kHz)
• Coil Inductance: 400 mH (1 kHz)
• DC Resistance: 410 ohms
• Vertical Tracking Angle: 20 degrees
• Mount: P-mount (T4P) — plugs directly into a P-mount tonearm
• Weight: 6.0 g (0.21 oz)
• Replacement Stylus: ATN85EP
