Audio-Technica - VM95SH Dual Moving Magnet Stereo Cartridge

The flagship of the VM95 Series — a nude Shibata stylus that pulls maximum detail out of every groove.

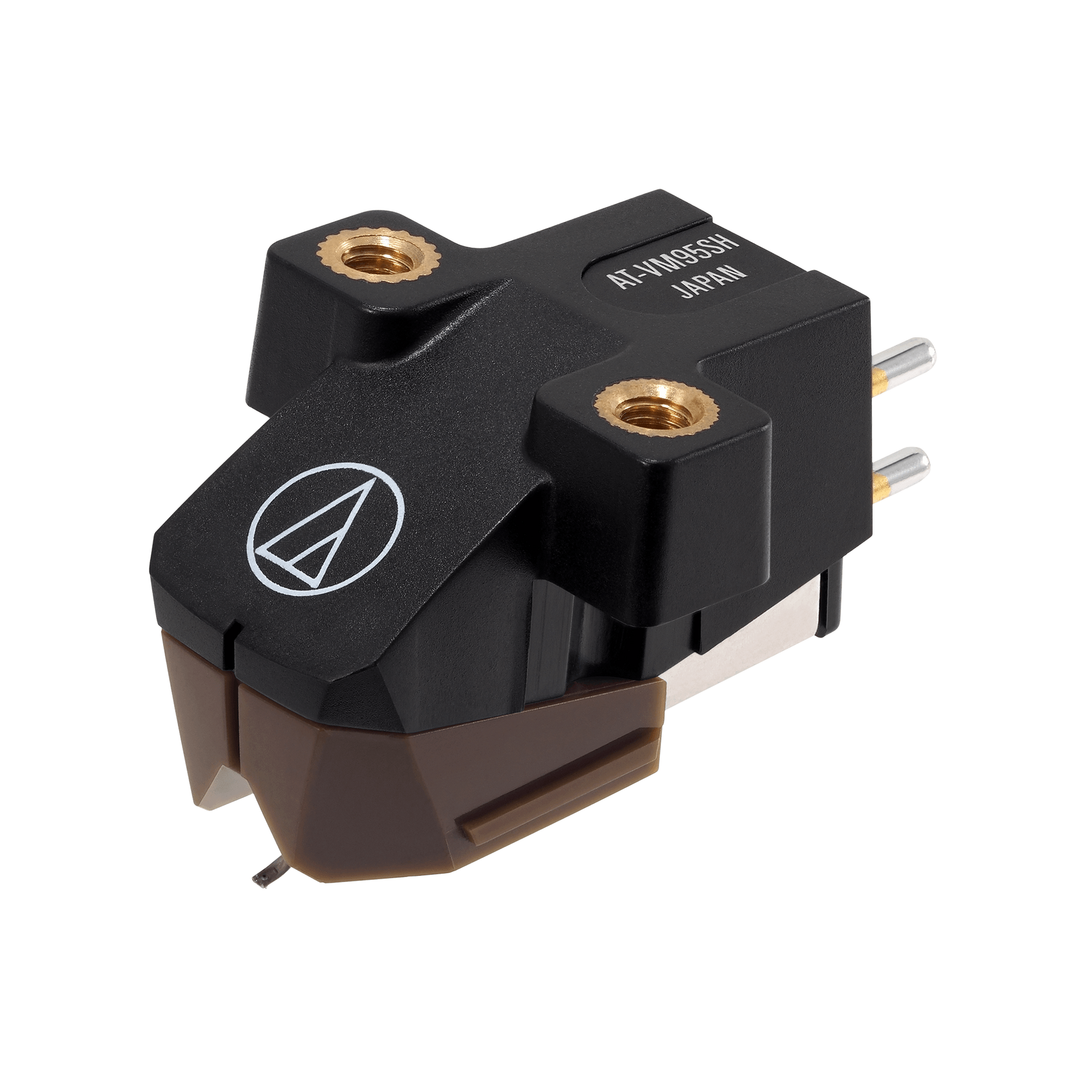

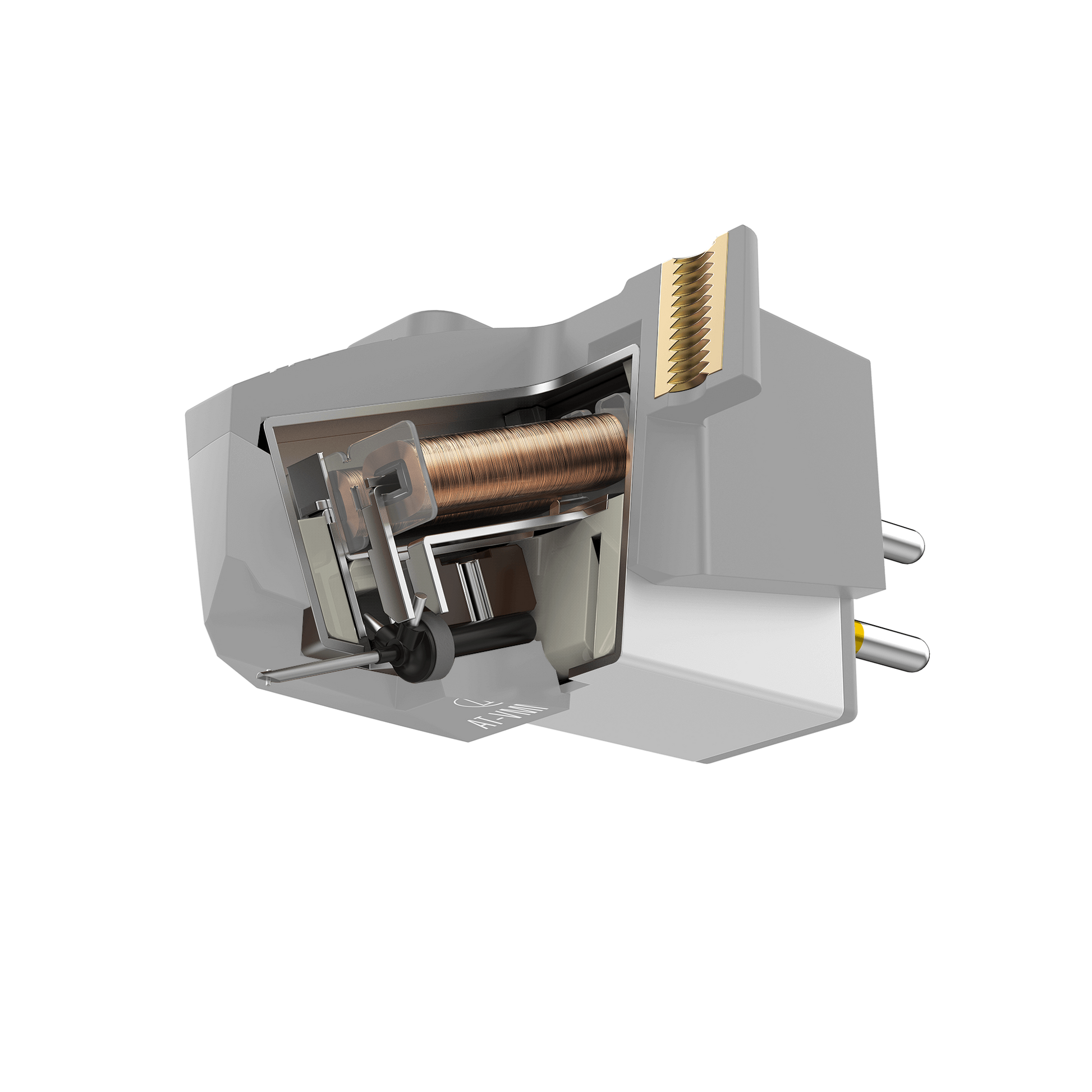

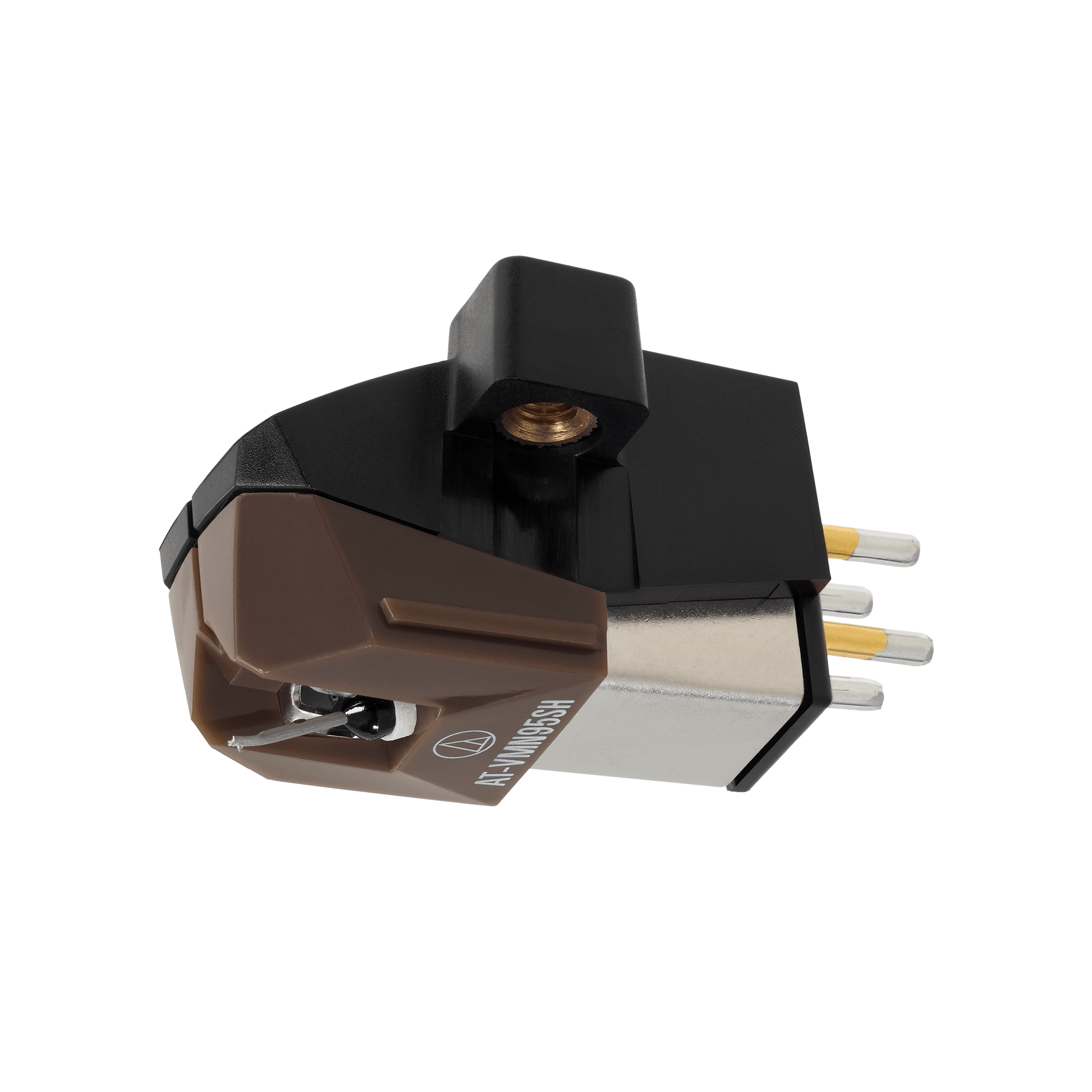

The AT-VM95SH sits at the top of Audio-Technica's VM95 range, built on the company's VM dual magnet design: two magnets arranged in a V shape to match the left and right channels cut into the record groove, giving excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance polymer housing features threaded inserts for simple two-screw mounting on any half-inch headshell — no nuts required.

Its 2.7 x 0.26 mil Shibata stylus uses nude square-shank construction on an aluminum pipe cantilever. The Shibata's slender line-contact profile rides deeper and truer in the groove than conical or elliptical tips, resolving fine high-frequency information while spreading contact pressure to be gentle on your records. As with every VM95 body, it accepts any AT-VMN95 replacement stylus, so upgrading or swapping profiles never means re-mounting a cartridge.

Features

• 2.7 x 0.26 mil Shibata stylus with nude square-shank construction
• VM dual magnet design for excellent channel separation and low distortion
• Aluminum pipe cantilever
• Durable, low-resonance polymer housing
• Threaded inserts allow easy two-screw mounting — no nuts required
• Compatible with any AT-VMN95 Series replacement stylus
• Half-inch mount fits standard headshells

Specifications

• Type: VM Series dual magnet stereo cartridge
• Stylus: 2.7 x 0.26 mil Shibata, nude square shank
• Cantilever: Aluminum pipe
• Coil Wire: Tough pitch copper
• Body: Durable low-resonance polymer
• Output Voltage: 3.5 mV (1 kHz, 5 cm/sec)
• Frequency Response: 20-25,000 Hz
• Channel Separation: 23 dB (1 kHz)
• Channel Balance: 1.5 dB (1 kHz)
• Tracking Force: 1.8-2.2 g (2.0 g standard)
• Recommended Load: 47,000 ohms / 100-200 pF
• Coil Impedance: 3.3 k ohms (1 kHz)
• Coil Inductance: 550 mH (1 kHz)
• DC Resistance: 485 ohms
• Static Compliance: 20 x 10^-6 cm/dyne
• Dynamic Compliance: 10 x 10^-6 cm/dyne (100 Hz)
• Vertical Tracking Angle: 23 degrees
• Mount: Half-inch
• Weight: 6.1 g
• Replacement Stylus: AT-VMN95SH

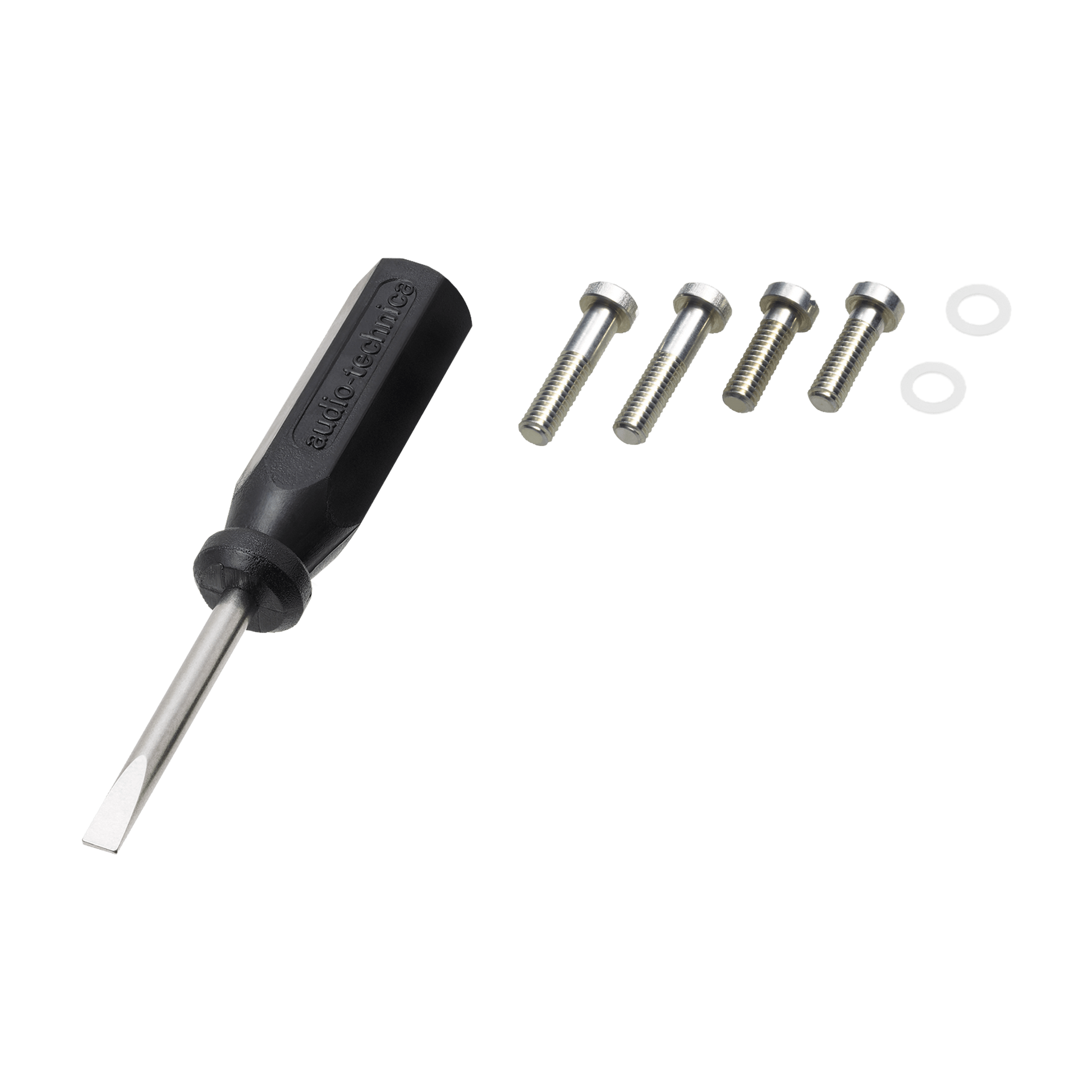

• Included: Installation screws (11 mm x 2, 8 mm x 2), two washers and a non-magnetic screwdriver
