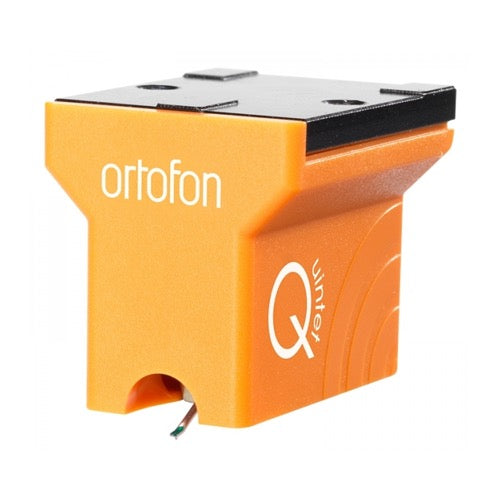

Ortofon - Quintet Bronze MC Phono Cartridge

MC Quintet Bronze Technical data Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV Channel balance at 1 kHz - < 1.2 dB Channel separation at 1 kHz - > 23 dB Channel separation at 15 kHz - > 15 dB Frequency range at - 3dB - 20-25.000 Hz Frequency response 20-20.000 Hz - +/-1.5 dB Tracking ability at 315Hz at recommended tracking force *) - 80 µm Compliance, dynamic, lateral - 15 µm/mN Stylus type - Nude Fine Line Stylus tip radius - r/R 8/40 µm Tracking force range - 2.1-2.5 g (21-25 mN) Tracking force, recommended - 2.3 g (23 mN) *) Typical value Tracking angle - 20° Internal impedance, DC resistance - 5 Ohm Recommended load impedance - > 20 Ohm Cartridge body material - ABS/Aluminium Coil wire material - Pure 4-nines copper Cartridge colour - Bronze Cartridge weight - 9 gram
