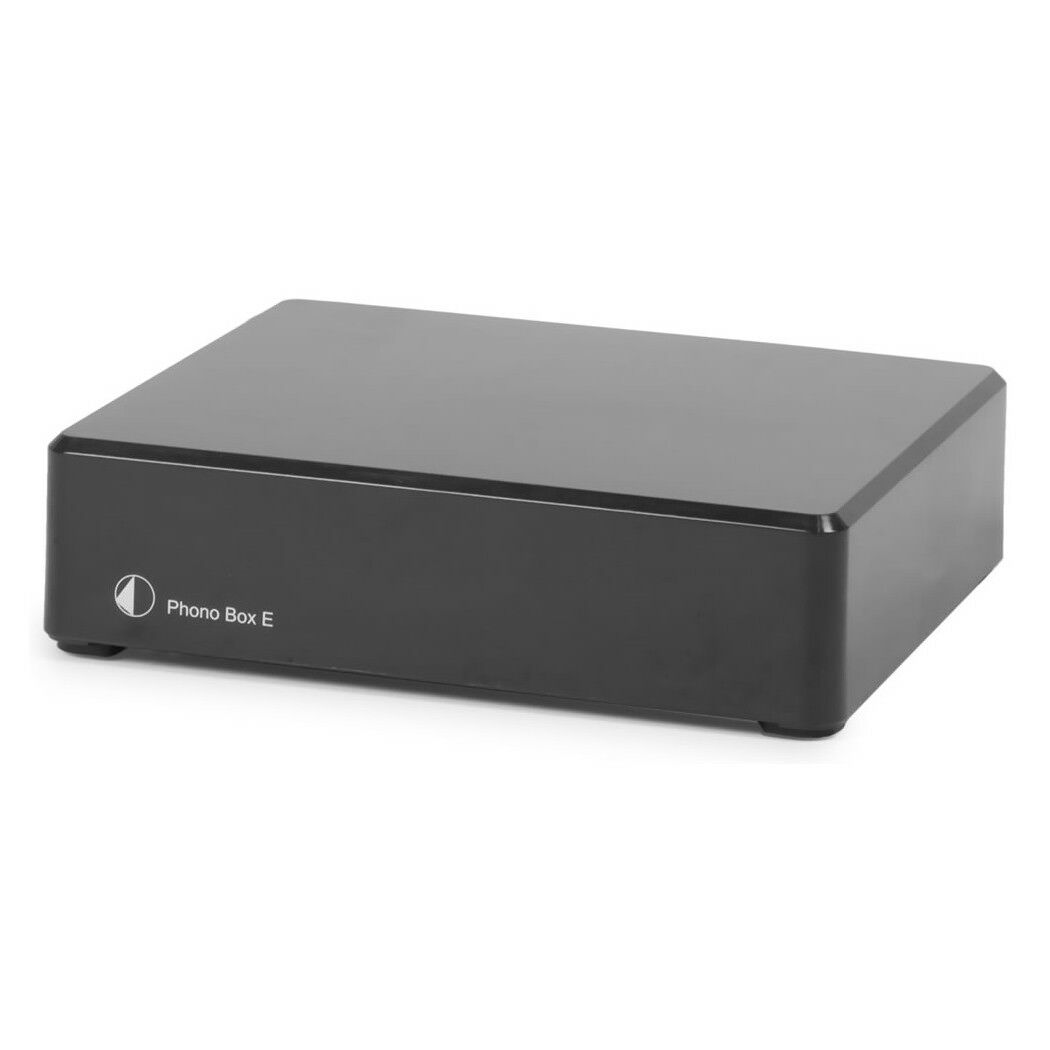

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry-level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.
• Amplification and RIAA equalisation for MM cartridges
• Design principle inspired by Dr. Sykora
• SMD circuitry
• Special low noise components
• Internal metal shielding
• Small size allows installation close to record player
• Gold plated RCA connection sockets
• Outboard power supply included
• Black casing only
TECHNICAL SPECIFICATIONS Input impedance
47k ohms
Input capacitance
120pF
Gain
40dB
Output voltage(typically)
500mV @ 1KhZ with 5mV input
Noise floor
88dB (A weighted)
THD
<0,04%
RIAA equalisation accuracy
20Hz –20kHz (+0,5/ -,02dB)
Input
1 pair RCA socket
Output
1 pair RCA socket
Outboard power supply
18V/500mA DC; 220 - 240V, 50Hz
Standby power consumption
< 1 watt
Power consumption
20mA DC
Dimension W x H x D (D with sockets)
4.72 x 1.26 x 3.94 (3.53) in
Weight
.55lb without power supply
