Technics - SU-GX70 Network Integrated Amplifier
Technics - SU-GX70 Network Integrated Amplifier
Couldn't load pickup availability
A heavily featured streaming amplifier that combines the sonic genes of Technics Grand Class components with a wealth of source functions, including video connectivity, the SU-GX70 Network Audio Amplifier easily integrates into the home hi-fi system with the inclusion of an HDMI ARC port.
- Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimization)
- Twin Power Supply Circuit System
- Ideal Impulse Response through LAPC (Load Adaptive Phase Calibration)
- Pure Amplification Mode
- High-quality Audio through Low-impact HDMI Video Output
|
Output Power |
40W+40W(1kHz,T.H.D.1.0%,8Ω,20kHz LPF) / 80W+80W(1kHz,T.H.D.1.0%,4Ω,20kHz LPF) |
|
FTC Output Power |
40W + 40W ( 1kHz, T.H.D. 1.0%, 8Ω, 20kHz LPF ) / 60W + 60W ( 1kHz, T.H.D. 1.0%, 4Ω, 20kHz LPF ) |
|
Load Impedance |
4Ω-16Ω |
|
Frequency Response |
PHONO (MM): 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 4Ω ) / LINE:20Hz - 40kHz ( -3dB, 4Ω ) / DIGITAL: 20Hz - 80kHz ( -3dB, 4Ω ) |
|
Input Sensitivity / Input Impedance |
PHONO (MM): 2.0 mV / 47 kΩ / LINE: 200 mV / 23 kΩ |
|

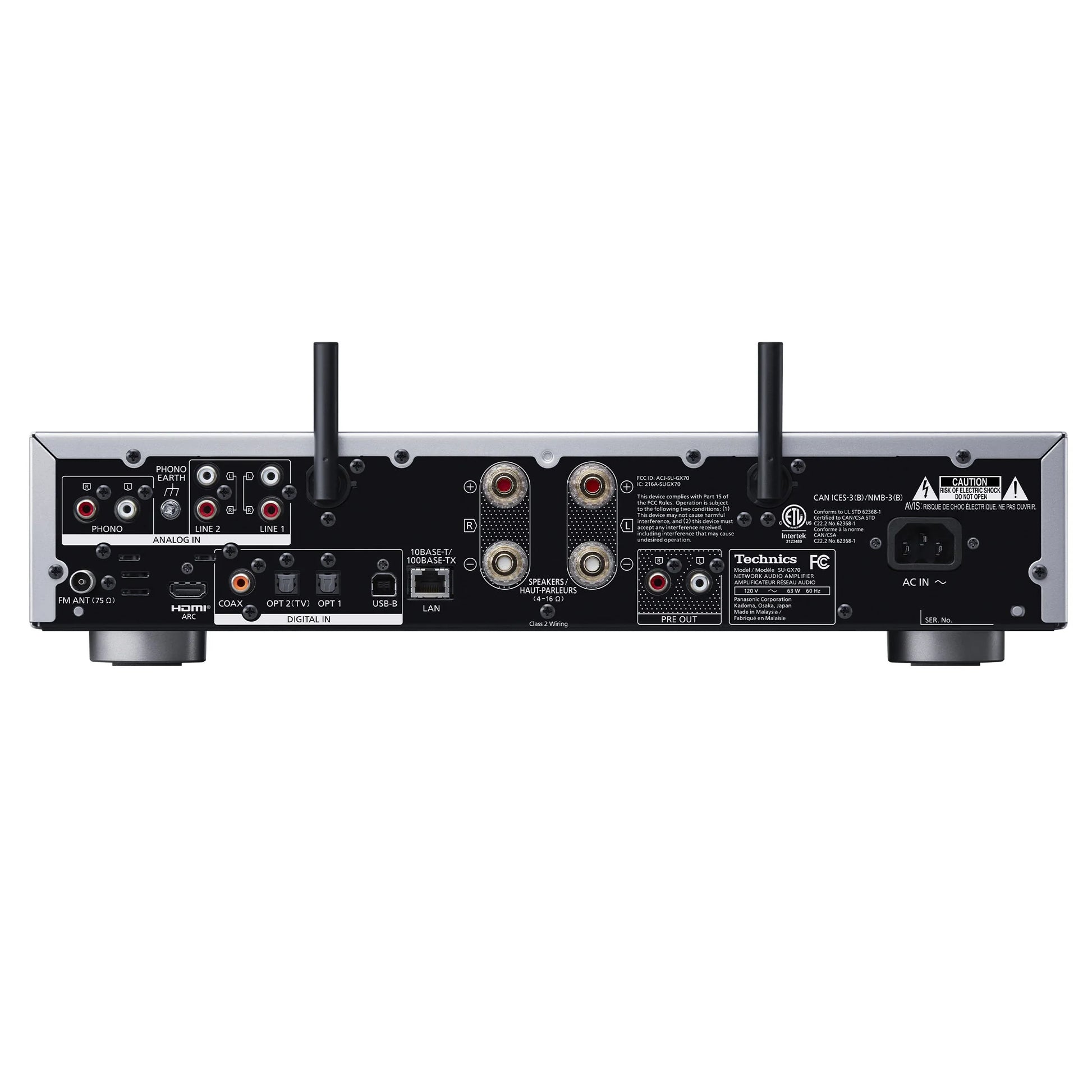

Analogue Input Terminal |
LINE x 2 / PHONO (MM) x1 |
|
Digital Input Terminal |
Optical digital x2 / Coaxial digital x1 / USB-A x1 / USB-B x1 |
|
Analogue Output Terminal |
PRE OUT x1 |
|
Digital Output Terminal |
HDMI ARC |
|
Headphone Output |
Yes, Stereo Φ6.3 mm (1/4") |
|
USB-A: iPod/iPhone/iPad |
No |
|
USB-A: Support Codec |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) |
|
USB-A: Support Codec FLAC |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) |
|
USB-A: Support Codec DSD |
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz) |
|
USB-A: Support Codec AIFF |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) |
|
USB-A: Support Codec ALAC |
Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) |
|
USB-A: Support Codec AAC |
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps) |
|
USB-A: Support Codec MP3 |
Yes (32, 44.1, 48 kHz / 16-320 kbps) |
|
PC(USB-B) |
USB 2.0 High-speed / USB Audio Class 2.0, Asynchronous mode |
|
PC(USB-B) Support Codec LPCM |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 352.8, 384 kHz / 16, 24, 32 bit) |
|
PC(USB-B) DSD control mode |
ASIO Native mode, DoP mode |
|
MQA Decorder |
Yes |
|
LAN(DMR) WAV |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) |
|
LAN(DMR) FLAC |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) |
|
LAN(DMR) DSD |
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz) |
|
LAN(DMR) AIFF |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) |
|
LAN(DMR) ALAC |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) |
|
LAN(DMR) AAC |
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps) |
|
LAN(DMR) MP3 |
Yes (32, 44.1, 48 kHz / 16-320 kbps) |
|
Ethernet Interface |
LAN (100BASE-TX/10BASE-T) |
|
Wi-Fi |
LAN (100BASE-TX/10BASE-T) |
|
Chromecast built-in |
Yes |
|
AirPlay 2 |
Yes |
|
Bluetooth® (Support codec) |
Yes (AAC, SBC) |
|
Tuner |
FM |
|
Power Supply |
AC 120 V ,60 Hz |
|
Power Consumption |
63W |
|
Accessories |
AC Cord, FM Indoor Antena, Remote Control, Batteries for Remote Control, Owner's Manual |
|
Dimensions |
(16-15/16 x 3-55/64 x 14-31/64)inch |
|
Weight |
|
|
Approx. 14.6 lbs |
|
