Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
  • Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
  • Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
  • Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
  • Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
  • Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
  • Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell

Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell

$1,199.99

2M Black LVB 250 Premounted

The 2M Black LVB 250 upgrades the great build of the 2M Blackwith a boron cantilever and our very own Nano Tube suspension system. The result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

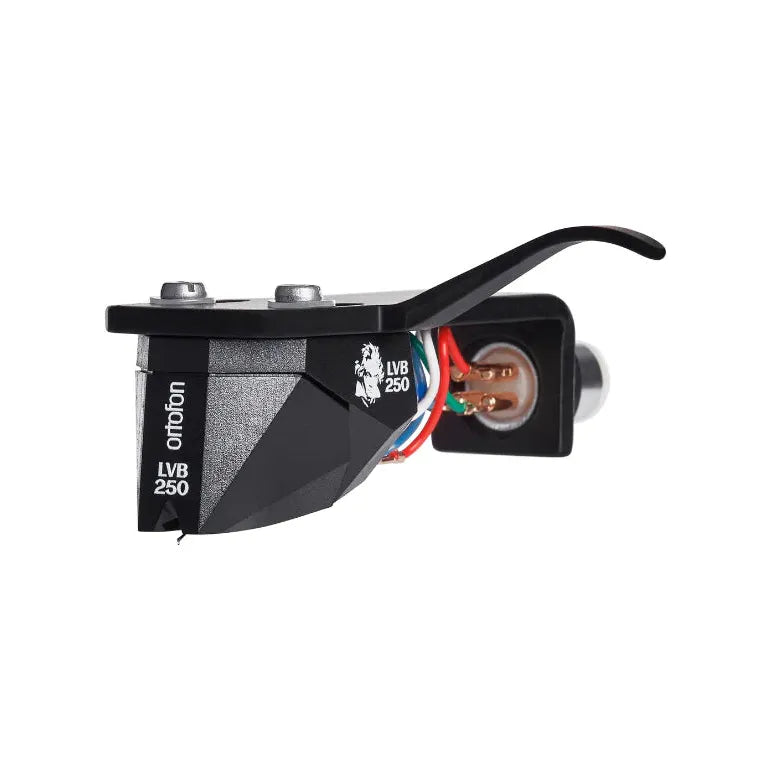

The 2M Black is mounted on our classic SH-4 headshell.

Like having the artist in the room with you

Accuracy level

The 2M Black is an amazing cartridge and, by many, considered the ultimate in moving magnet. So, why would we attempt to create something even better? Because perfection runs in our blood.

The 2M Black LVB 250 upgrades the great build of the 2M Black, and the result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

Nude Shibata diamond on a boron cantilever

Stylus

The 2M Black LVB 250 upgrades the great build of the 2M Black with a Nude Shibata diamond on a boron cantilever. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.

The Nude Shibata stylus’ slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.

Multi Wall Carbon Nano Tubes (MWCNT)

Features

To attain an optimal interaction between compliance and damping, a new rubber compound for the suspension system has been developed. The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes' (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.

Specifications

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    5 mV
  • Channel seperation at 1 kHz
    27 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    22 µm/mN
  • Stylus type
    Nude Shibata
  • Stylus tip radius
    r/R 6/50 µm
  • Tracking force range
    1.5-1.7 g (15-17 mN)
  • Tracking force, recommended
    1.6 g (16 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.2 kOhm
  • Cartridge colour
    Black/Black
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    630 mH
  • Recommended load capacitance
    150-300 pF
UPC: 5705796080445
