Technics - Direct Drive Turntable System SL-1000RE-S
Technics - Direct Drive Turntable System SL-1000RE-S
Couldn't load pickup availability

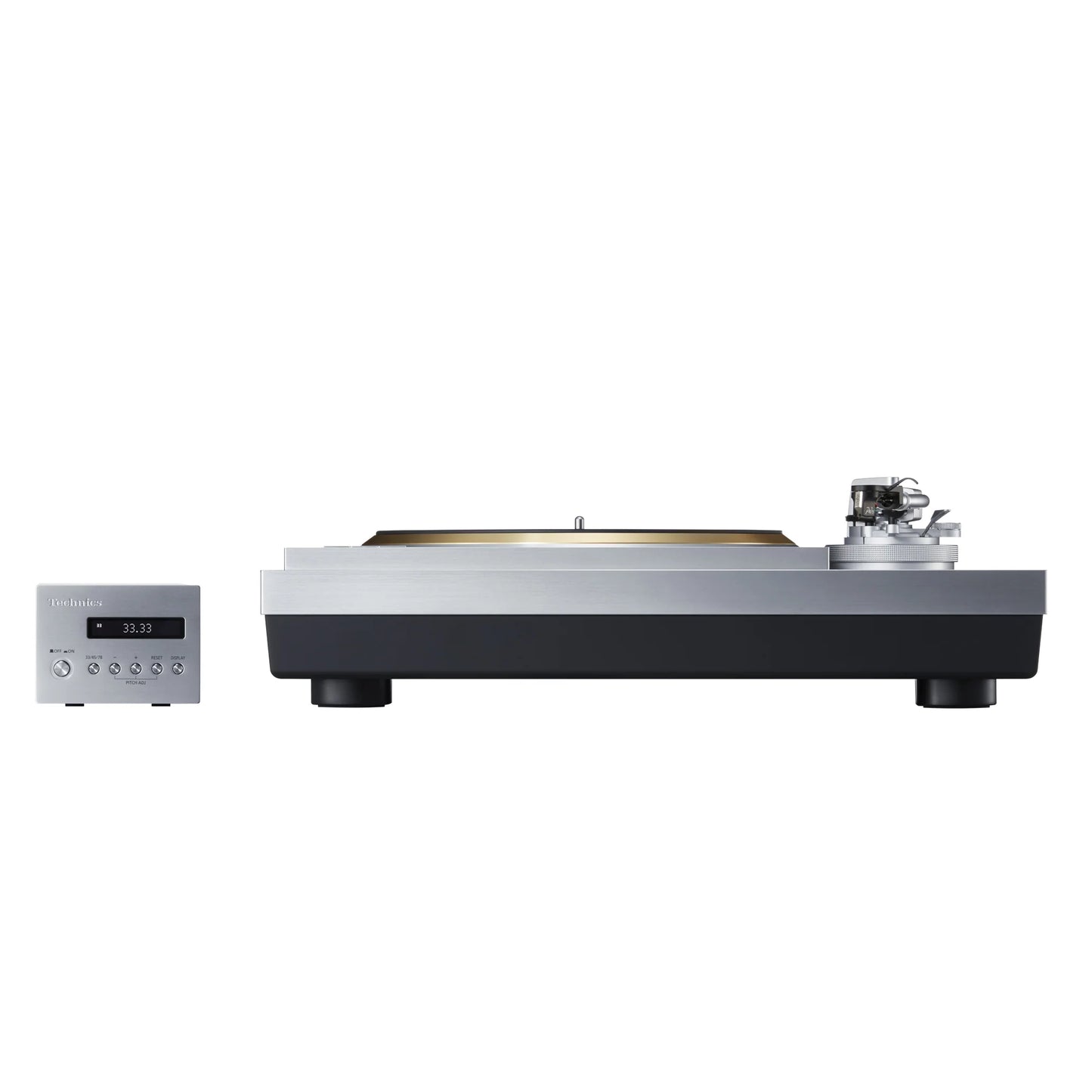

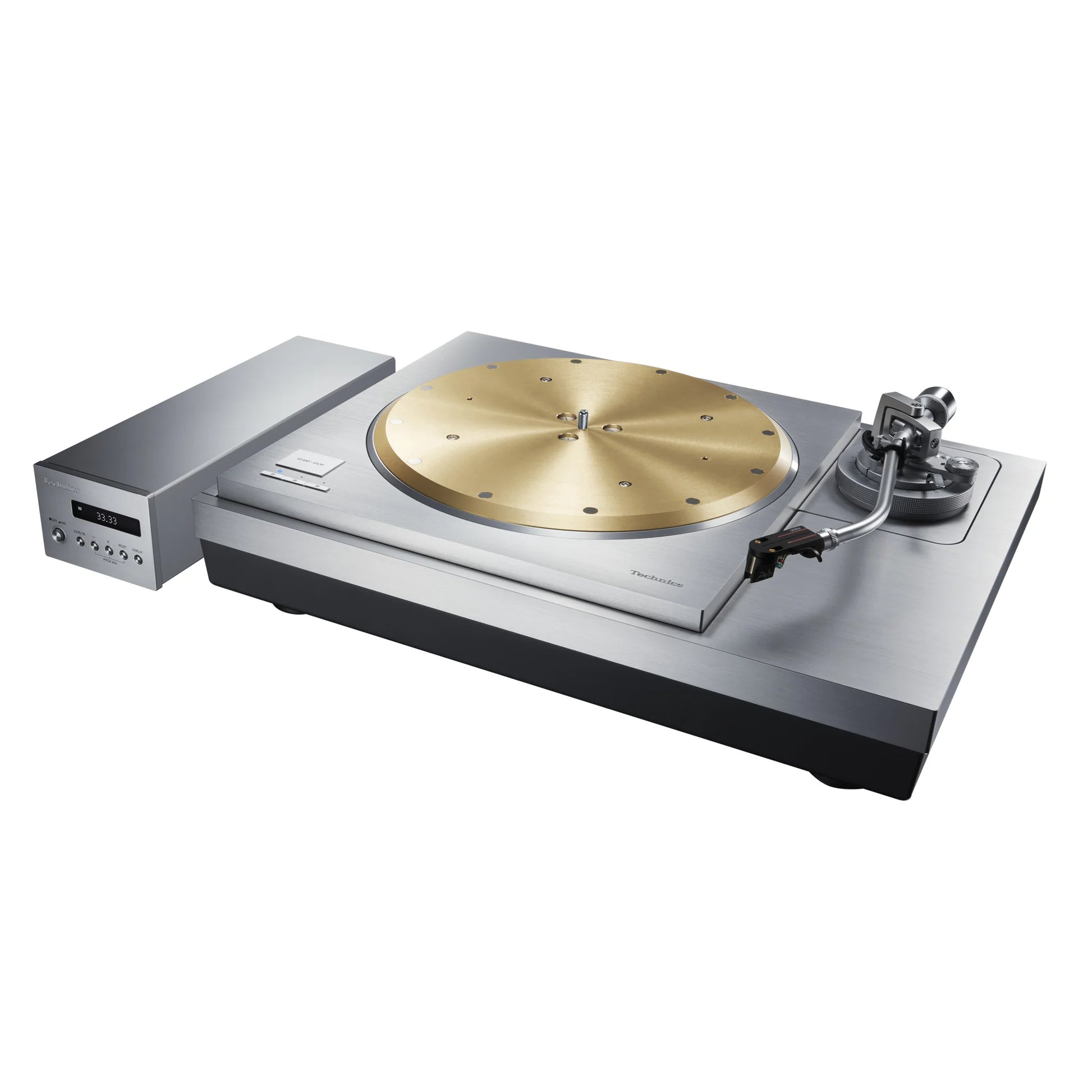

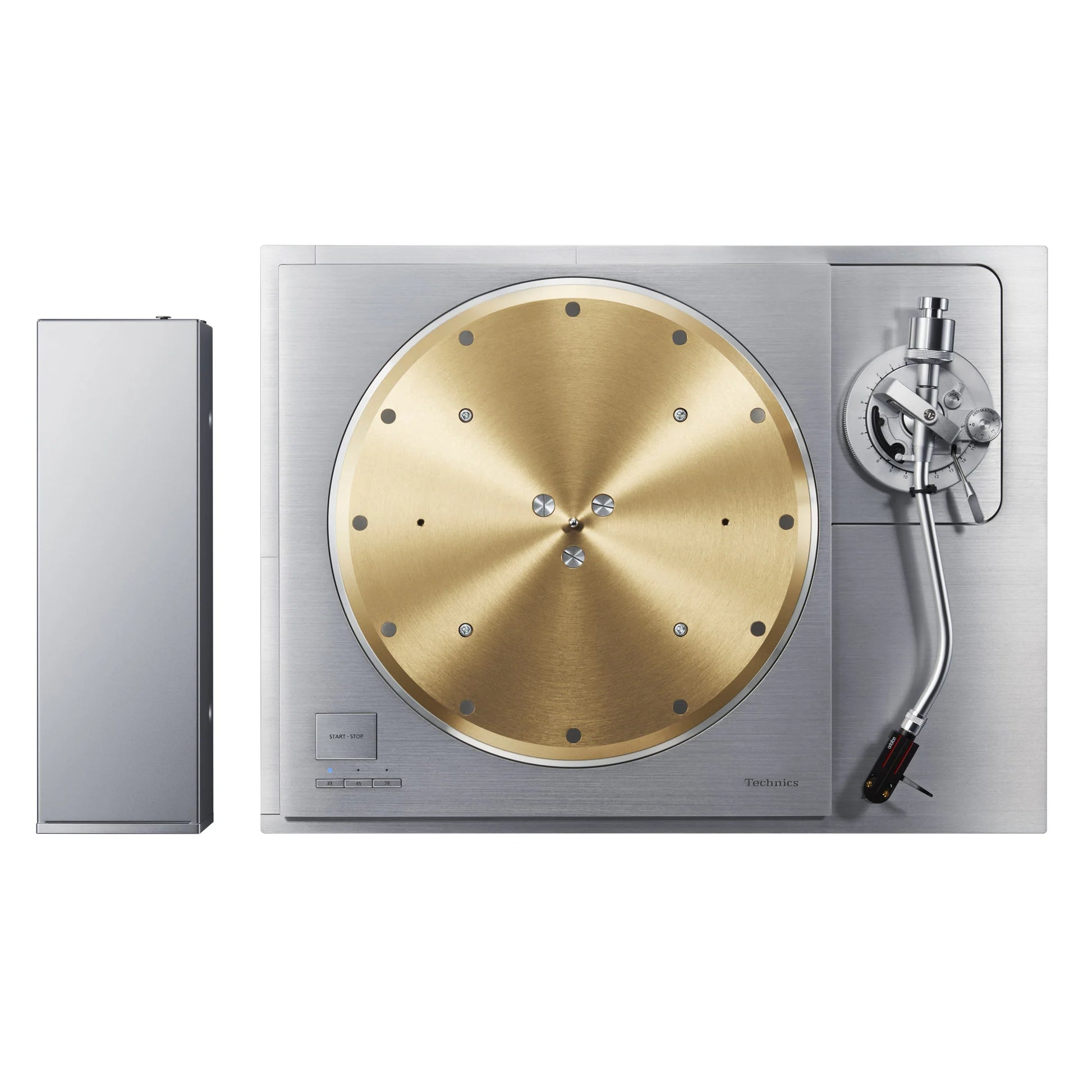

An exquisite, reference-class direct drive turntable system, the SL-1000RE-S faithfully reproduces audio with highly vivid sound.
Exquisite, reference-class direct drive turntable system, the SL-1000RE-S uses the SP-10RE-S motor unit with a coreless direct drive motor that was developed for the SL-1200G and further improved to provide both high rigidity and reliability. The high-sensitivity tonearm achieves high initial-motion sensitivity to precisely trace the grooves cut into the records, producing highly vivid sounds.
- Double coil twin rotor-type coreless direct drive motor with heavyweight-class platter
- Constructed to prevent unwanted vibration, helping to achieve overwhelming rotary precision
- The turntable platter positions tungsten weights for high rigidity and excellent vibration damping
- The control unit is separated from the main unit to suppress the effects of unwanted noise
- Supports not only LP (33 1/3 rpm) and EP (45 rpm) analog records, but also SP (78 rpm)
|
General |
|
|
Power Supply |
AC 110 - 240 V, 50 / 60 Hz |
|
Power Consumption |
10 W, Approx. 0.05 W (Standby) |
|
Dimensions (W x H x D) |
Main Unit 531 x 188 x 399 mm (20-29/32 × 7-13/32 × 15-23/32 inch), Control Unit 110 x 84 x 350 mm (4-11/32 × 3-5/16 × 13-25/32 inch) |
|
Weight |
Main Unit Approx. 40.2 kg (88.7 lbs), Control Unit Approx. 2.1 kg (4.7 lbs) |
|
Operating Temperature Range |
0° to +40° (32°F to +104°F) |
|
Operating Humidity Range |
35 % to 80 % RH (no condensation) |
|
Accessories |
Turntable, Turntable mat, EP record adaptor, Balance weight, Auxiliary weight(Small)(Middle)(Large), Overhang gauge, Screw set for turntable, Detachable handle, Hex wrench, Insulator attachment, Dust cover, AC main leads, Owner's manual |
|
Terminals |
|
|
Audio Output |
PHONO (Din Jack) x 1 *Straight Type Cable Only |
|
Tonearm Section |
|
|
Type |
Universal Static Balance |
|
Effective Length |
From the tonearm pivot to the stylus : 254mm (10"), From the tonearm pivot to the spindle : 239mm (9-13/32") |
|
Overhang |
15 mm (19/32 inch) |
|
Tracking Error Angle |
Within 1° 48' (at the outer groove of 30 cm (12") record), Within 0° 30' (at the inner groove of 30 cm (12") record) |
|
Offset Angle |
21° |
|
Arm Height Adjustment Range |
0 - 15 mm |
|
Stylus Pressure Adjustment Range |
0 - 4 g (Direct Reading) |
|
Applicable Cartridge Weight Range (including Headshell) |
15.9 - 19.7 g (without auxiliary weight) 18.8 - 23.6 g (with small auxiliary weight) 22.5 - 26.3 g (with middle auxiliary weight) 26.0 - 31.0 g (with large auxiliary weight) |
|
Turntable Section |
|
|
Drive Method |
Direct Drive |
|
Motor |
Brushless DC motor |
|
Turntable Speeds |
33 1/3, 45, 78 rpm |
|
Adjust Range |
±16 % |
|
Starting Torque |
0.39 N·m / 4.0 kg·cm (3.47 lb-in) |
|
Wow And Flutter |
0.015 % W.R.M.S. |
|
Turntable Platter |
Brass and aluminium diecast combined, Diameter : 323 mm (12-23/32"), Weight : Approx. 7.9 kg (17.5 lbs) (including turntable mat) |
