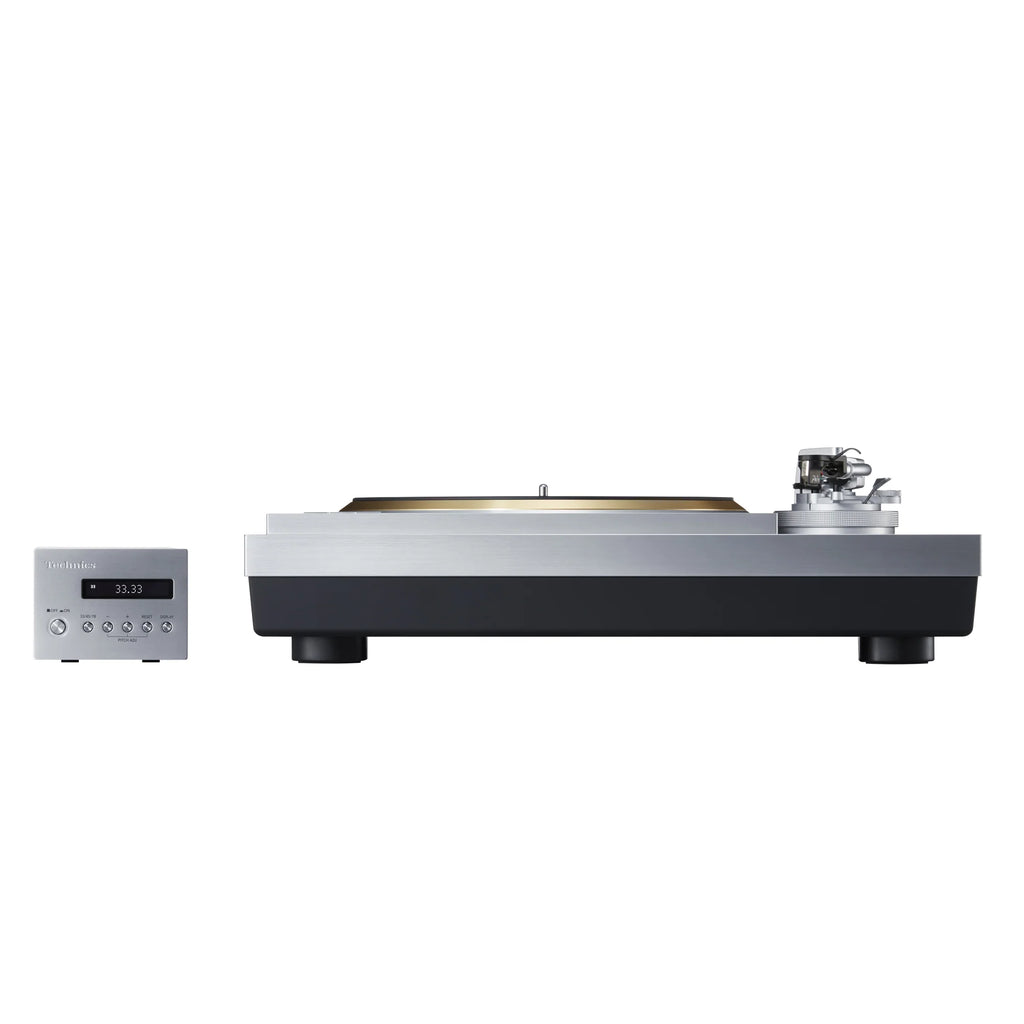

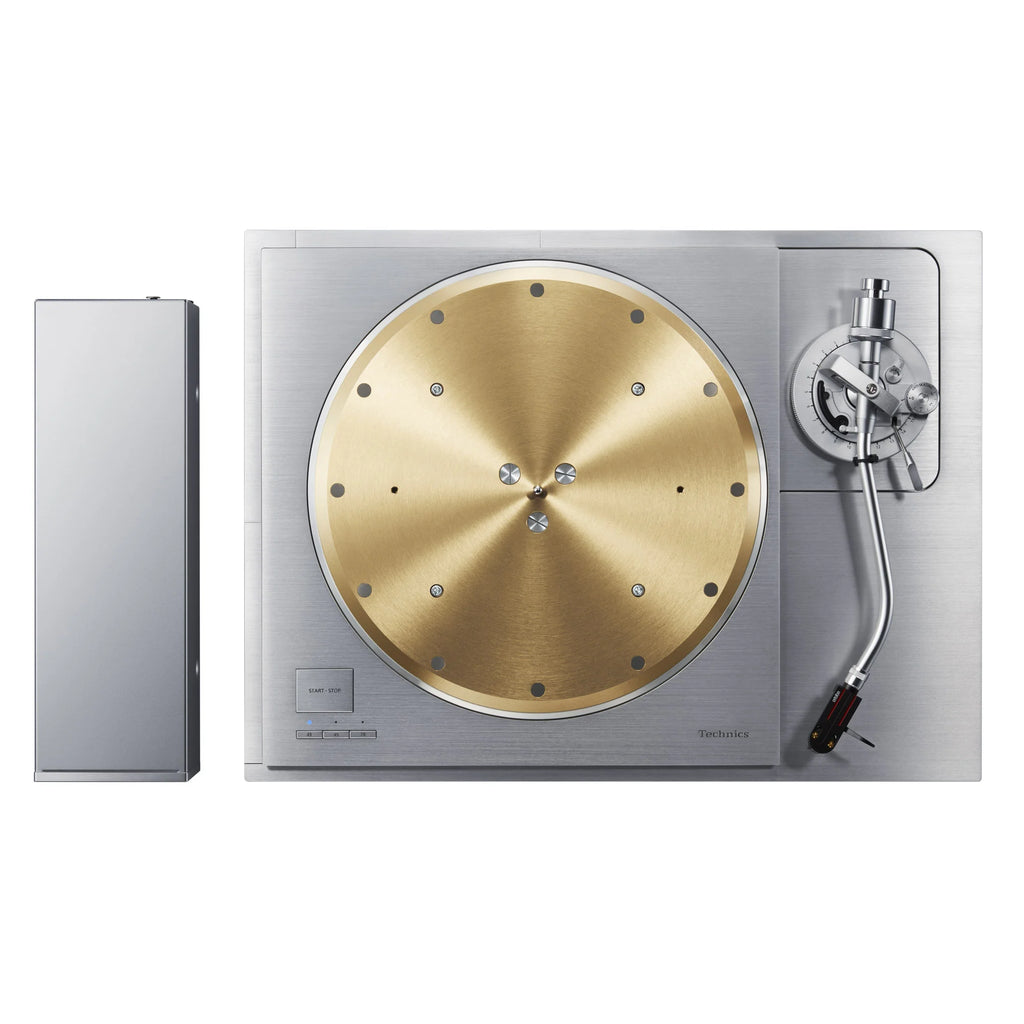

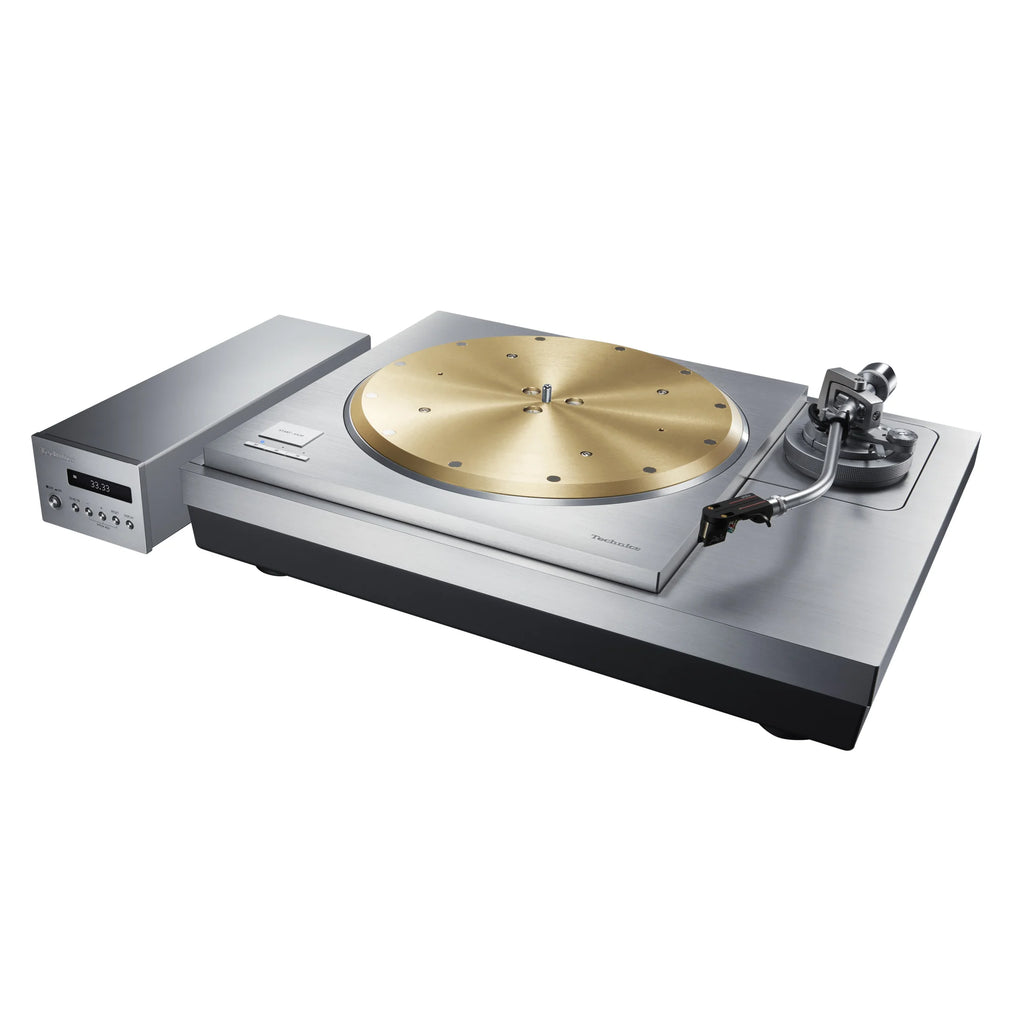

Technics - SL-1000RE-S Reference Direct Drive Turntable System

Reference Class: a double-coil twin-rotor coreless motor turning a 7.9kg brass-and-aluminium platter in a five-layer cabinet, with the power supply and speed control exiled to a separate outboard unit. Forty kilograms before you add a cartridge.

The SL-1000R is what Technics builds when cost is not the constraint. It descends directly from the SP-10 broadcast turntables that made Technics’ reputation in the 1970s, and it is engineered to the same brief: absolute rotational accuracy, achieved by mass, torque and control rather than by isolation tricks.

The motor is a coreless direct drive with, in Technics’ own words, a double-coil twin-rotor construction. It produces 0.39N·m of starting torque and turns a platter of brass and aluminium die-cast weighing 7.9kg — more than twice the SL-1200G’s. Published wow and flutter is 0.015% W.R.M.S., which is the lowest figure Technics quotes for anything in the range.

What separates this from everything below it architecturally is the outboard Control Unit. The power supply and speed-control electronics live in their own 2.1kg chassis, connected by cable, so the switching and regulation happen well away from the motor and the cartridge. Every other Technics turntable puts that circuitry inside the plinth.

The tonearm is a genuinely different design from the SL-1200 family’s, not a longer version of it: 254mm effective length against 230mm, 21° offset angle against 22°, and arm height adjustable across 15mm rather than 6mm. It accepts cartridges from 15.9g to 31.0g with the supplied auxiliary weights, which is a heavier range than the SL-1200 arm covers — it is built for the big low-compliance moving coils this deck will end up carrying. Output is via a DIN jack, and Technics notes that only straight-type cables are compatible.

Two things Technics does not publish for this deck that it does publish further down the range: a rumble or signal-to-noise figure, and the time to reach 33 1/3rpm. We looked. They are not there.

For anyone assembling a system from parts rather than buying the complete deck: Technics also sells the bare SP-10R motor unit on its own, and an SH-1000R base to build around it. The SL-1000R listed here is the complete system — motor, tonearm, cabinet and control unit, one purchase.

Features

• Coreless direct-drive motor of double-coil, twin-rotor construction
• 0.39N·m starting torque — the highest in the Technics range
• 7.9kg brass-and-aluminium die-cast platter, 323mm
• 0.015% W.R.M.S. wow and flutter
• Separate outboard Control Unit housing the power supply and speed control
• 10-inch-class universal static-balance tonearm, 254mm effective length, 15mm of height adjustment
• Accepts cartridges from 15.9g to 31.0g
• Five-layer rigid cabinet on high-damping silicon insulators
• Complete system — motor, arm, cabinet and control unit in one purchase

Specifications

• Type: Direct drive manual turntable system, Reference Class
• What is included: The complete system: main unit with integrated motor, tonearm and five-layer cabinet, plus the separate outboard Control Unit. Technics separately sells the bare SP-10R motor unit and an SH-1000R base for owners building a custom system; neither is needed here
• Drive: Direct drive
• Motor: Brushless DC, coreless, described by Technics as a double-coil twin-rotor type. No numeric coil or pole count is published
• Platter: Brass and aluminium die-cast combined, 323mm, approximately 7.9kg including the turntable mat
• Speeds: 33 1/3, 45 and 78rpm
• Pitch adjustment: ±16%
• Starting torque: 0.39N·m (4.0kg-cm)
• Start-up time: Not published for this model
• Wow and flutter: 0.015% W.R.M.S.
• Rumble / signal-to-noise ratio: Not published. Unlike the SL-1200G, whose page carries an IEC 98A rumble figure, no Technics page for the SL-1000R publishes one
• Tonearm: Universal static balance. This is a different arm from the SL-1200 family’s, not a variant of it. Tube material, bearing type and bearing material are not published, and no discrete tonearm model number is given
• Effective tonearm length: 254mm, pivot to stylus
• Overhang: 15mm
• Offset angle: 21° — note this differs from the SL-1200 series arm’s 22°
• Effective tonearm mass: Not published. Technics publishes no tonearm effective mass figure for any turntable in the current range.
• Arm height adjustment: 0–15mm
• Anti-skate: Stylus pressure direct-reading dial, 0–4g. Mechanism type not published
• Headshell: Included. No model number is published
• Cartridge weight range: 15.9–31.0g using the various auxiliary weights supplied
• Cartridge fitted: None
• Built-in phono equaliser: None
• Outputs: PHONO (DIN jack) x1. Technics notes that only straight-type cables are compatible. No balanced XLR output
• Cabinet: Five-layer rigid cabinet. Technics does not itemise the layer materials on its English-language pages
• Insulators: High-damping silicon insulator
• Dimensions: Main unit 531 x 188 x 399 mm; Control Unit 110 x 84 x 350 mm (W x H x D)
• Weight: Main unit approximately 40.2kg; Control Unit approximately 2.1kg
• Power supply: Outboard, in the separate Control Unit. AC 110–240V, 50/60Hz
• Power consumption: 10W
• Country of manufacture: Not published. Technics prints no country-of-manufacture statement on its product pages, specification sheets or owner’s manuals for any model in the current range — we checked all three for this product. Claims circulate online about where Technics builds its turntables; none of them come from Technics, so we are not going to repeat them here as fact.
• Warranty: Panasonic administers Technics warranty in the United States and the term varies by model rather than by product category. The SL-1000R is listed in Technics’ own US warranty table at three years parts and three years labour. Technics states that product registration is not required and does not extend coverage. A dated sales receipt is required, coverage runs to the original purchaser, and the product must be purchased and serviced in the United States. Non-rechargeable batteries, antennas and cosmetic cabinet parts are excluded. Note that Technics’ warranty statement does not explicitly name styli or cartridges as excluded items, even though wear-part exclusion is normal industry practice — we would not assume coverage either way without asking Panasonic first.
